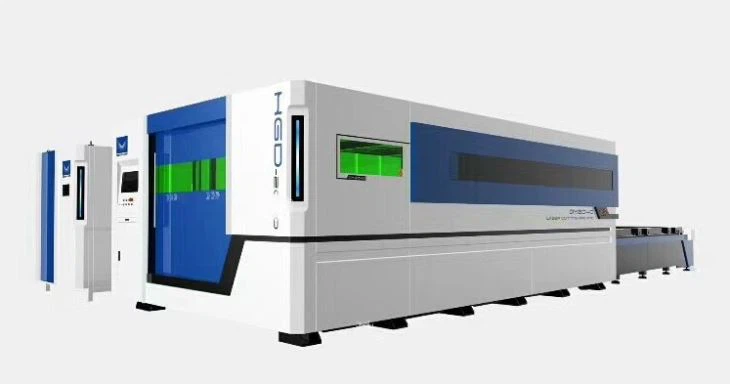

2060 2000W Fiber Laser Cutting Machine

Features: Low running cost Low energy consumption Low maintenance cost High performance High speed High quality High accuracy High efficiency Application: High power fiber Laser cutting machine is widely used in processing of carbon steel, stainless still, alloy steel, galvanized sheet,...

Product Details

Features:

Low running cost

Low energy consumption

Low maintenance cost

High performance

High speed

High quality

High accuracy

High efficiency


After-sale Sevice

<<< We offer professional after-sales installation and  guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.

<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service

 <<<Equipment warranty period of one year, optical lenses can not be maintained. Laser generator has 12months warranty, machine maintenance of life.


Application:

High power fiber Laser cutting machine is widely used in processing of carbon steel, stainless still, alloy steel, galvanized sheet, aluminum, copper sheet high speed cutting.

Fiber Laser Cutter consists of laser generator, control system, motion system, optical system, cooling system, fume-extraction system, it adopts famous brand servo motor and transmission and guide structure with excellent performance to achieve good motion accuracy in high-speed state

Technical Parameter:

Item

Parameter

2000W

1

Laser Generator

IPG German, or Raycus made in China

2

Laser Wavelength

1070nm

3

Laser Repeat Frequency

CW

4

Mechanical driving system

Rack&Pinion, ATLANTA, German

5

PC System

Industrial control,EVOC, Taiwan

6

X axis servo unit

1000W servo single driving, Fuji, Japan

7

Y axis servo unit

2000W servo dual driving, Fuji, Japan

8

Z axis servo unit

400W servo single driving, Fuji, Japan

9

Limit switches

NPN,Omron, Japan

10

Min Line width

0.15mm

11

Max.Cutting Thickness

≤18mm for carbon steel             ≤8mm for stainless steel

12

Continued Working Time

≥20 hours

13

Max.Cutting Dimension

150*300cm

150*600cm

200*600cm

14

Wortable Cutting Accuracy

0.05mm/m

15

Repeated Positioning Precision

±0.05mm/m

16

Power Supply

Three-phase 5 wires AC 380V±5%,50Hz±1%

Qingyuan Laser is well-known as one of the largest and professional 2060 2000w fiber laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you 2060 2000w fiber laser cutting machine at low price.
