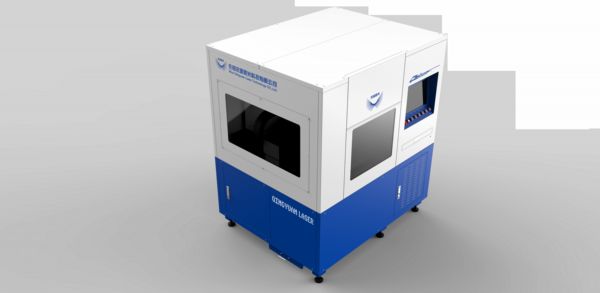

0505 Small Fiber Laser Cutting Machine

Features: Low running cost Low energy consumption Low maintenance cost High performance High speed High quality High accuracy High efficiency Application: Middle power fiber Laser cutting machine is widely used in processing of carbon steel, stainless still, alloy steel, galvanized sheet,...

Product Details

Features:

  • Low running cost

  • Low energy consumption

  • Low maintenance cost

  • High performance

  • High speed

  • High quality

  • High accuracy

  • High efficiency

Application:
 Middle power fiber Laser cutting machine is widely used in processing of carbon steel, stainless still, alloy steel, galvanized sheet, aluminium sheet high speed cutting. Typically use for glass metal frame and advertising characters/logos cutting production.

Fiber Laser Cutter consists of laser generator, control system, motion system, optical system, cooling system, fume-extraction system, it adopts famous brand servo motor and transmission and guide structure with excellent performance to achieve good motion accuracy in high-speed state

Technical Parameter:


Item

Parameter

500W

1

Laser Generator

Imported or made in China Optional

2

Laser Wavelength

1070nm

3

Laser Repeat Frequency

CW

6

Mechanical driving system

Ball Screw, Taiwan

9

PC System

Industrial control,EVOC, Taiwan

10

X axis servo unit

750W servo single driving, Fuji, Japan

11

Y axis servo unit

900W servo single driving, Fuji, Japan

12

Z axis servo unit

400W servo single driving, Fuji, Japan

13

Limit switches

NPN,Omron Japan

5

Min Linewidth

0.2mm(for materials with thickness less than 0.4mm)

6

Max.Cutting Thickness

≤6mm for carbon steel                   ≤4mm for stainless steel

7

Continued Working Time

≥20 hours

8

Max.Cutting Dimension

50*50cm

10

Wortable Cutting Accuracy

0.05mm/m

11

Repeated Positioning Precision

±0.05mm/m

12

Power Supply

Three-phase 5 wires AC 380V±5%,50Hz±1%


Qingyuan Laser is well-known as one of the largest and professional 0505 small fiber laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you 0505 small fiber laser cutting machine at low price.
