Automatic Coil Fed Laser Cutting Machine For Sheet Metal Coils

Qingyuan Laser is well-known as one of the largest and professional automatic coil fed laser cutting machine for sheet metal coils manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you automatic coil fed laser cutting machine for sheet metal coils at low price.



Automatic Coil Fed Laser Cutting Machine for Sheet Metal Coils

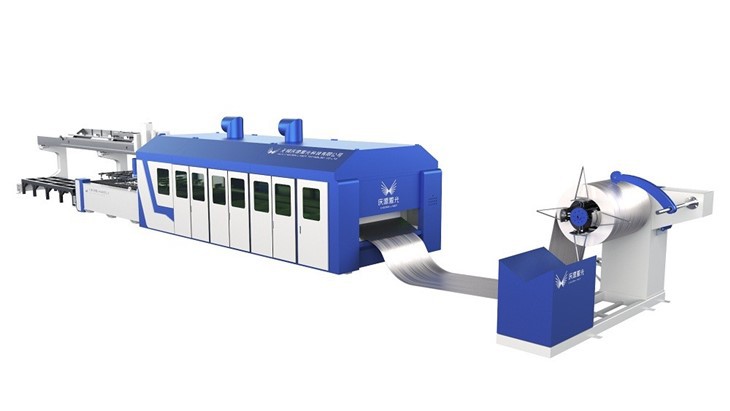

Coil fed laser cutting machine combines a fiber laser cutting machine with an automatic metal coil feeding system, resulting in an efficient coil fed laser cutting solution.

The fully automated assembly line is designed to maximize zero waste and improve sheet utilization.

Fields of application:

Specialized in cutting carbon steel and stainless steel coils up to 2mm.

Unique benefits of fiber lasers:

►Coil fiber laser cutting machine using fiber laser:IPG, fiber laser performance is very good, reliable, low overall cost, can help end-users to improve productivity and reduce costs at the same time.
Ultra-high photoelectric conversion efficiency, up to 30% to 40%;
►Outstanding pulse power stability;
►Long life and high precision, pump source service life >100,000 hours;
►High beam quality, faster speeds and better results;
►Semiconductor fiber as the laser generating medium, no laser generating gas, green environmental protection.

Technical Parameter:

Laser Power	1500W-3000W
Max Acceleration	1.2G
Power Consumption	12Kw
Maximum acceleration	140m/min
Min Linewidth	0.15mm (for materials with thickness less than 0.4mm), depends on the sheet thickness
Cutting Dimension	1500*3000mm, 2000*4000mm
Cutting Table Mechanical Accuracy	±0.03mm
X,Y Repeated Positioning Precision	±0.02mm

Machine Tool Bed

Laser Cutting Head

Cutting Samples:

QY machine advantages:

1. Good rigidity, high precision, improve productivity;

2. Effective material saving, improve cutting efficiency.

3. Integral molding process, high precision and stable quality

4. The bed is not deformed by heat, guaranteeing the lightness and stability when 2 times the load is loaded

5. Satisfy the processing demand of high productivity and low consumption.

6. Energy saving and consumption reduction, more economical and environmentally friendly.

7. Win the praise of global customers with our products and services.

Machine Package and Delivery:

Benefits & Services Provided To Customers

Factory and on-site operator training Advanced customer training Optimal system configuration Inbound Customer Support Designated customer service engineers

Advanced application support Notifications of System Upgrades Remote diagnostics capability Direct Technical Support Engineers log in for testing/troubleshooting
