12Kw Fiber Laser Cutting Machine

We supply 12kw fiber laser cutting machine.We are one of the top ten manufacturer in China,dedicated to only fiber laser cutting machine since 2008,specialized in full range of laser cutting machine,so far we have produced more than 5800sets of laser cutting machine for local and oversea market,if you have plan for a laser cutting machine for your cutting production, we'll be glad to provide more information for the machine.

Send Inquiry Chat Now

Product Introduction

Technical Parameter
1	Laser Wavelength	1070nm
2	Maximum Power	12Kw
3	Max Acceleration	1.5G
4	Power Consumption	70Kw
5	Max Speed	Single axis speed ≤120m/min Complex speed ≤160m/min
6	Min Linewidth	0.15mm (for materials with thickness less than 0.4mm), depends on the sheet thickness
7	Cutting Thickness	MS: max 40mm， production 35mm SS: max 40mm， production 30mm
8	Cutting Dimension	Exchange Table With Full Protection Cover 25006000mm 25008000mm
9	Cutting Table Mechanical Accuracy： ±0.05mm
10	X,Y Repeated Positioning Precision： ±0.03mm
11	Power Supply: Three-phase 5 wires AC 380V±5%，50Hz/60HZ±1%

Our Machine Advantages

Air conditioner room:

with all electrical parts and laser source inside,

Heat isolation、Dust Isolation、Fire Proof

which will keep machine working stably even 24hours continued working, and prolong lifetime of electrical parts

Monitor Control System

For good sake of operator’s safety

each dead corner area can be monitored during cutting timely, the process can be

controlled.

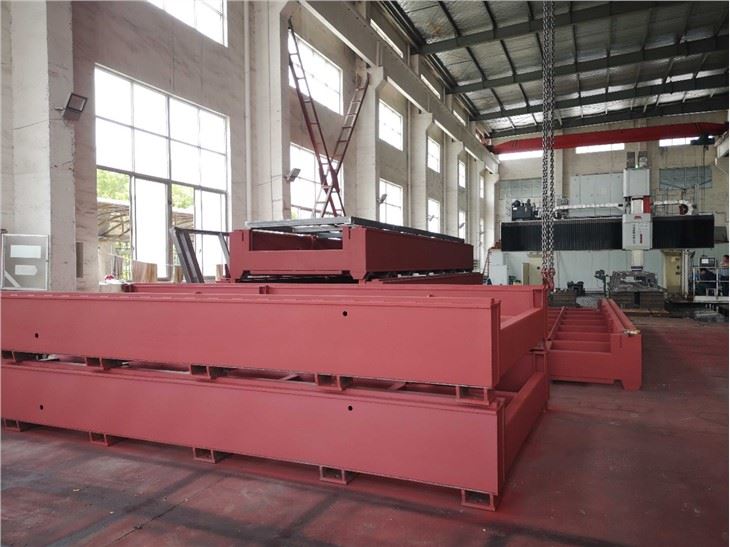

The main frame adopts a gantry beam structure, and the table bed is produced by welded by steel plates, and the stress is eliminated by T6 heat treatment, so that the strength, rigidity, servo drive acceleration and deceleration and numerical control system are highly matched

No deformation in 20 years’ production
