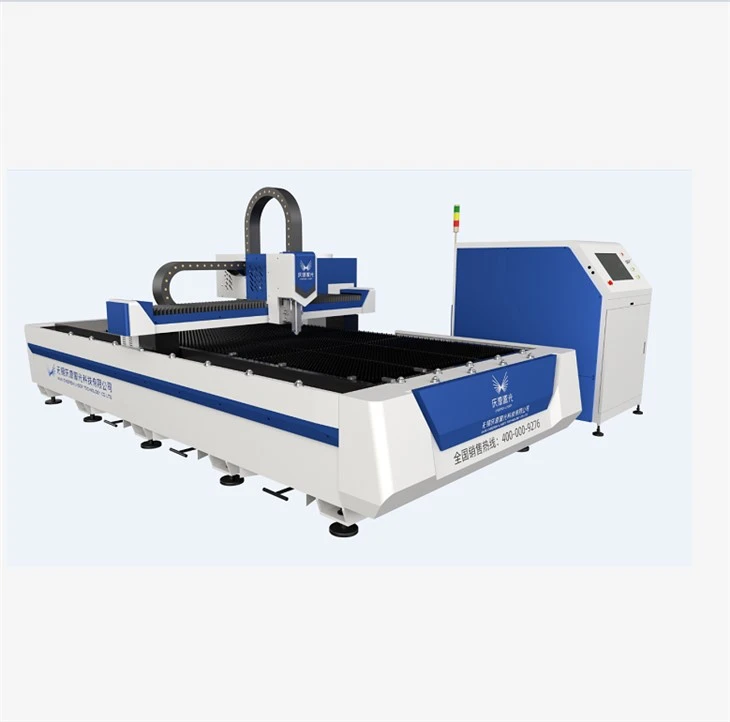

1500watts Small Table Metal Fiber Laser Cutting Machine

Qingyuan Laser is well-known as one of the largest and professional 1500watts small table metal fiber laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you 1500watts small table metal fiber laser cutting machine at low price.



Power:  1500W

Table size: 1500x3000mm / 1500x4000mm/ 1500x6000mm

Cutting head: Raytool (autofocus) / WSX (autofocus)

Laser source: IPG (German brand)/ Raycus(China brand)



Application：

Middle power fiber Laser cutting machine is widely used in processing of carbon steel, stainless still, alloy steel, galvanized sheet, aluminium sheet high speed cutting. Typically use forkitchenware, filling cabinet, elevator and various cabinetscuttingproduction.



Fiber Laser Cutter consists of laser generator, control system, motion system, optical system, cooling system, fume-extraction system, it adopts famous brand servo motor and transmission and guide structure with excellent performance to achieve good motion accuracy in high-speed state

Technical Parameter
Item	Parameter	1500W
1	Laser Generator	IPG German, or Raycus made in China
2	Laser Wavelength	1070nm
3	Laser Repeat Frequency	CW
4	Mechanical driving system	Rack&Pinion, ROR, German
5	PC System	Industrial control,Nodka Taiwan
6	X axis servo unit	Fuji, Japan
7	Y axis servo unit	Fuji, Japan
8	Z axis servo unit	Fuji, Japan
9	Limit switches	NPN,China
10	Min Linewidth	0.15mm
11	Max.Cutting Thickness	≤15mm for carbon steel             ≤6mm for stainless steel
12	Continued Working Time	≥20 hours
13	Max.Cutting Dimension	150*300cm
		150*400cm
		150*600cm
14	Wortable Cutting Accuracy	0.05mm/m
15	Repeated Positioning Precision	±0.05mm/m
16	Power Supply	Three-phase 5 wires AC 380V±5%，50Hz±1%



Cutting Samples



Cheeron laser(QY laser) was established in 2008, dedicated to only fiber laser cutting machine R&D, design, production and sales.
We pay attention to the technology, the quality, the application, the market optimization conformity and take "higher efficiency,
higher performance, higher precision" as our goal. We have also developed more than 80 models of products, each kind of machine
has reached the domestic and international market leading level.

What makes QY laser(Cheeron laser) different from 90% of the domestic factories that process optical fiber laser cutting machines:
1. We have started producing fiber laser cutting machines since 2008. 9 years in this field have brought more experiences.
2. We are committed to fiber laser cutting machines from 700 watts to 15000 watts, and we are aiming to make it the best in order
to compete with others.
3. The company has a strong R & D team, including 65 engineers, among them are 10 with more than 10 years experience in fiber
laser machines, who focus on the development of new technology and high-tech equipment, which make us always a market leader.
4. We have a young and experienced after-sales service team with 60 local engineers and 5 foreign engineers.

Besides, we have a strong technical team that can not only provide standard machines, but also customize them according to
customer requirements.

Core teams:
Our core team owns a postdoctoral and a doctorate, who have a background in laser applications and research abroad, and more than
10 years of experience in the laser industry.

Technical team: we have 65 technicians
8 Senior Technical Engineers, mainly responsible for laser R&D.
25 intermediate technicians, mainly responsible for pre-sale technical support and after-sales service, to ensure the stability of
machine work and market credibility;
32 junior technical engineers, mainly responsible for manufacturing and quality control, to ensure high-quality, high-performance
machinery for customers.

The company adheres to the idea“winning by quality”. After 8 years of development and growth, the most important thing is to win
the trust of customers and a good reputation.

We are confident to be your best partner!



More Cutting videos as below:

https://youtu.be/lFxycCEd5pQ

https://youtu.be/yMtBSf09m_M





Hot Tags: 1500watts small table metal fiber laser cutting machine China, suppliers, manufacturers, price
