400*500mm 3Kw Coil Fed Laser Cutting Machine

Qingyuan Laser is well-known as one of the largest and professional 400*500mm 3kw coil fed laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you 400*500mm 3kw coil fed laser cutting machine at low price.



400*500mm 3Kw Coil Fed Laser Cutting Machine

The Machine Advantages:

●One machine is one automatic production line, with integrated five in one functions of uncoiling, straightening, feeding and cutting, unloading, which breaks the traditional production method, with great advantages: ●Saving labor cost: one worker can operator the whole production line

●High efficiency: saving material loading and unloading time, increasing production efficiency by 2times

●Save material cost: coil material cost is lower than sheet, straightening cost can be save 30usd/ton

●Maximum flexibility: suitable for diversification and non-standard production

●High utilization rate: cutting file can be freely nested to save materials, material utilization rate is generally above 90%~95%

●Easy Stock: material in coil takes less factory space, convenient to arrange stock

Technical Parameter
Laser Wavelength	1070nm
Maximum Power	3000W
Max Acceleration	1G
Power Consumption	25Kw
Max Speed	Single axis speed ≤60m/min
Cutting Thickness	≤ 3mm for mild steel and stainless steel
Cutting Dimension	400*500mm   X: 410mm   Y: 510mm
Cutting Table Mechanical Accuracy： ±0.03mm/m
X,Y Repeated Positioning Precision： ±0.02mm/m
Power Supply: Three-phase 5 wires AC 380V±5%，50Hz/60HZ±1%

	Decoiler Frame: 1.Coil inner diameter : 450mm-530mm 2.Coil outside diameter: Max= 1200mm 3.Expansion method: hydraulic 4.Max Loading: 5tons
	Straightener and feeder integrated Leveling width: 100-400mm Flatness accuracy=+- 0.5mm Max feeding speed= 24m/min Feeding accuracy: +-0.2mm per meter Leveling thickness: <= 3mm for GA, SS, MS
Unloading: the product and wastage material will be collected separately at different area

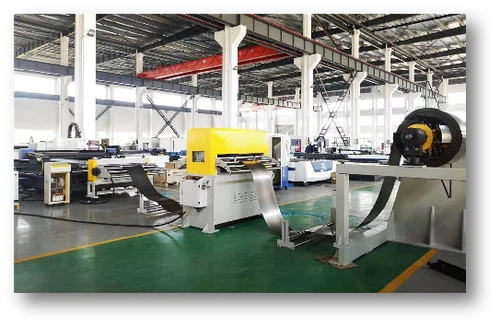

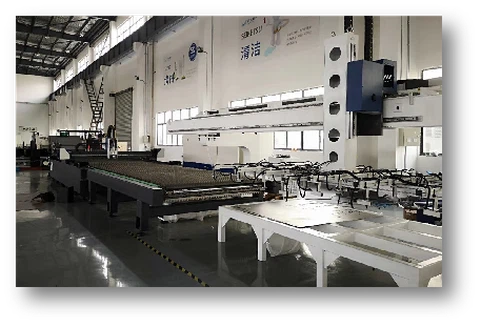

Machines At customers’ factory
