6KW Fiber Laser Cutting Machine

We Supply 6KW Fiber Laser Cutting Machine Machine Details 1, Closed type room, which is good for exhausting, and environment protect 2, Tempering Treatment for table frame, which can bear 8000W cutting ability, welded body sheet thickness from 12mm to 16mm 3,...

Send Inquiry Chat Now

Product Introduction

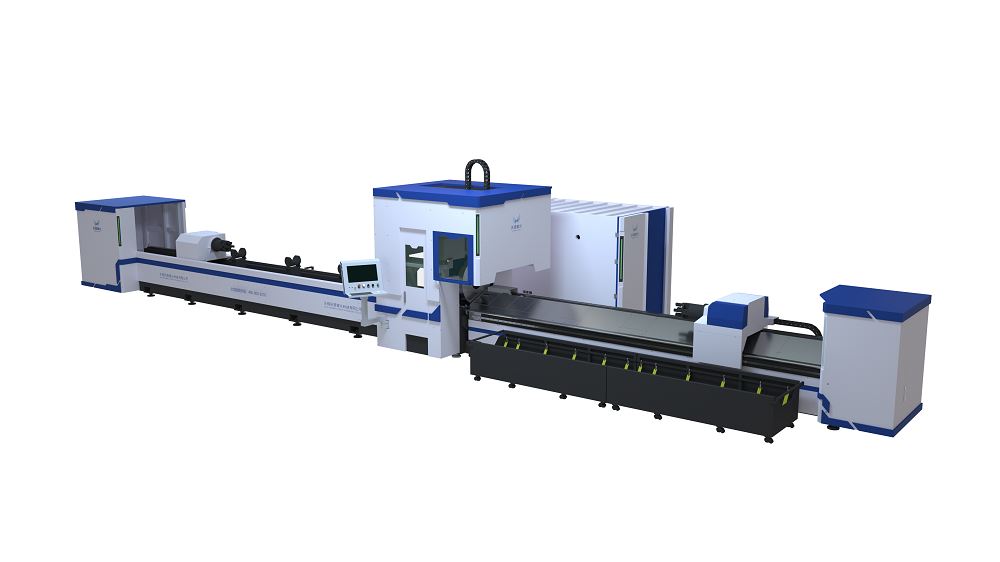

6KW Fiber Laser Cutting Machine

With cutting capability till 25mm for mild steel and 16mm for stainless steel

Main Electrical Collocation
Part Name & Descriptions		remark
6000W Laser Generator	IPG（German）	German
Optical system	Import Media diaphragm	UK
Laser cutting head	Precitec(Procutter) autofocus	German
Water chiller	Over-flow protection, temperature stability ± 0.5 ℃, green two-cycle water-cooled machine, titanium evaporation control cold	Wuhan, China
Mechanical driving system	Rack&Pinion, Bevel type Atlanta	German
High precision auto-sensor	Accuracy ±0.1mm	China
PC System	Industrial control	EVOC, Taiwan
X axis servo unit	2Kw servo single driving	Yaskawa, Japan
Y axis servo unit	4Kw*2 servo dual driving	Yaskawa, Japan
Z axis servo unit	750W for head with auto focus	Yaskawa or Fuji, Japan
Electric Proportion	Schneider	German
Cutting Software	Cypcut(support English language, file formate .dxf, PLT, Gerber, AI and so on)	Shanghai, China

Advantages:High and low double working table, saving loading and unloading time. Adopting an overall full-enclosed design to reduce laser radiation and increase safety.

Cutting Samples

6Kw laser cutting machine (3)
