QY Shuttle Table CNC Fiber Laser Cutting Machine For Metal Sheet
We Supply QY Shuttle Table CNC Fiber Laser Cutting Machine for Metal Sheet.
Product Introduction

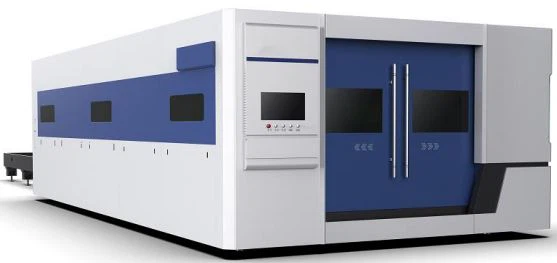

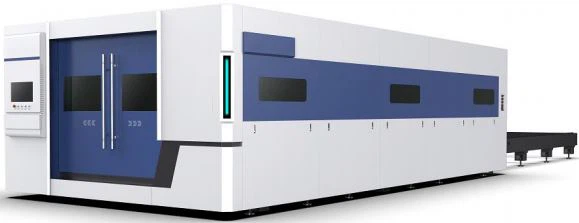

QY Shuttle Table CNC Fiber Laser Cutting Machine for Metal Sheet

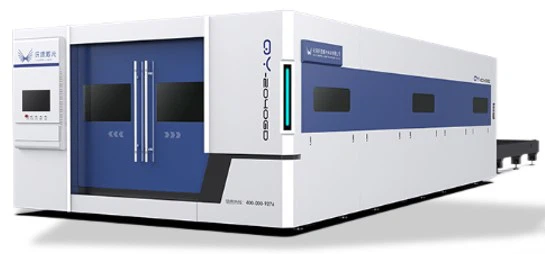

High safety fully enclosed structure design;

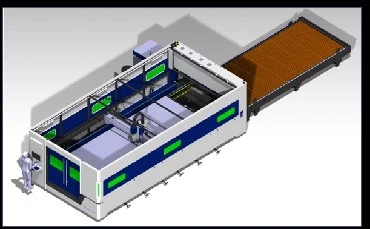

High and low double table, save loading and unloading time, composite heat insulation armor to effectively protect the main beam of the bed in the ultra-high power laser processing environment of structural stability.Highlights:
1.Housing sheet metal
The top of the switchboard is made of sheet metal, so that the dust extraction effect is better and no pollution is caused to the plant
2.Crossbar
We use steel crossbeam instead of aluminum crossbeam, the current market is almost always used in the extrusion stretch aluminum crossbeam structure, this structure is light weight, short production cycle, low cost, used in small width equipment or thin plate processing, dynamic response will be faster. Tensioned aluminum crossbeam structure used in large format, high power cutting equipment, can not be a good buffer and release of high inertia kinetic energy, easy to cause wear and damage, affecting the stability of equipment and processing accuracy. Steel beams, on the contrary, can better meet the needs of equipment stability and cutting accuracy.

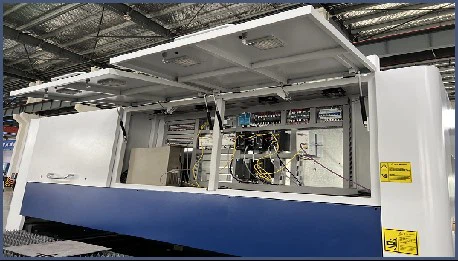

3.Circuit Design
Previously, it was an integrated operating room, which has the advantage of easy access and protection of the laser. The advantage of the back-side type is that it covers a small area and is easy to move, and it is also easy to overhaul, and it is also cheaper in price than the integrated operation room design.

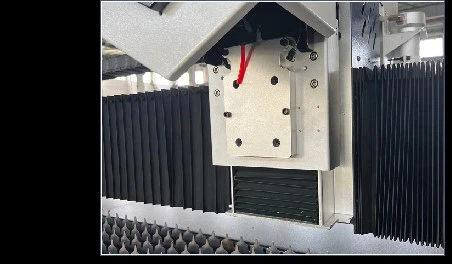

4.Z-axis module
We adopt the whole extruded module, which is formed in one time and has the characteristics of high precision, high strength and light weight. At the same time, the organ cover on the whole module adopts a profiling design, which greatly reduces the gap, ensures internal sealing, better dustproof effect, and improves the stability during operation
5.Fiber Laser
A new fiber laser from IPG is used.
With reliable performance and low overall cost, the fiber laser can help end-users reduce costs while increasing productivity.
Full cutting capacity with metal sheet cutting thickness up to 120mm.
