Large Format Single Platform Laser Cutting Machine For Metal Sheet

Qingyuan Laser is well-known as one of the largest and professional large format single platform laser cutting machine for metal sheet manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you large format single platform laser cutting machine for metal sheet at low price.



Large Format Single Platform Laser Cutting Machine for Metal Sheet

Machine parts introduction:

Power: 12Kw-30Kw

Cutting width:

       Standard model 3000*12500mm

Non-standard customized solutions.

       Width Can be increased to 3.5m, 4.0m

       Length 12.5m plus multiples of 2m, up to 24.5m

Products are suitable for cutting bulk metal sheets of.

Thickness: 10mm - 50mm

Maximum effective cutting width: 25m long X 3.5m wide.

(Segmented structure Length can be customized at will) Size can be customized: 3000*12500mm/4000*24500mm

1.Organ cover, metal armor :

The laser processing process will produce extremely high temperature metal slag, and when piercing, the slag will splash around, and part of it will splash on both sides of the equipment, causing great hidden danger to the precision transmission parts on the Y-axis.

In order to solve this problem, we choose the fire-resistant and heat-insulated organ cover for the protection of the gear and rack guide, and cover the side of the organ cover near the cutting head with metal armor, which will not melt through even if the slag splashes on it, and can effectively protect the gear and rack from the metal dust, and ensure the accuracy of the equipment to the greatest extent.

2.Equipment side - flue

Blowing and extracting type (optional) - Innovative dust extraction technology, better dust extraction effect. The dust generated by cutting is lighter in temperature and easier to fly upward. The traditional dust extraction is only by suction, but if the bed is large, the suction is not enough and the effect is not good.

The design of blowing and extracting follows: the left side (one side of the operating table) follows the dust extraction system + the right side blowing system, the axial fan moves with the gantry beam for blowing, the right side dust extraction channel opens and closes automatically with the gantry beam moving position, extracting dust in sections, sucking and blowing at the same time, which can discharge the fumes and dust generated during the cutting process to the maximum extent.

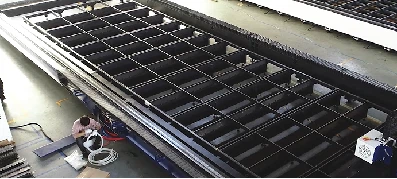

3.Equipment bed

Highlight 1.

Segmented modular table (optional) - convenient for customers to dismantle and change, clean and maintain, and improve efficiency.

Highlight 2.

Bed length can be customized at will-Flexible segmented base bed, length can be customized at will.

Highlight 3.

Bed welding method - the main bed is a steel plate box type welded structure

(internal reinforcement bars are welded every 500mm to ensure the stability of the structure, and the width of the box bed is 400mm to ensure the straightness of the bed), and the overall tempering, with higher precision, higher strength and higher stability.

Highlight 4.

Saw teeth with rounded teeth to prevent scratches and scrapes, but also to prevent the workpiece from sticking to the saw teeth during the cutting process, with pressure strips at both ends of the saw teeth to prevent the saw teeth from detaching from the table during the unloading process.

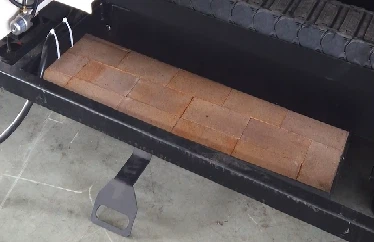

4.Bottom of the equipment - drawer with refractory bricks.

Highlight 1: drawer (optional) - steel plate material, not easy to deformation, small maintenance costs; set up more than one drawer to avoid the equipment can not be pulled after a long time use; the bed has a drawer guide groove under the body, convenient for daily use.

Highlight 2: Refractory bricks - The drawers are also equipped with refractory bricks to provide an additional layer of protection. The refractory bricks play a protective and thermal insulation effect, and the safety is doubly insured. For the customer, the maintenance and replacement cost of refractory bricks is lower.

5.Control cabinet

Highlight 1: Independent control cabinet - electrical components are integrated in the sheet metal cabinet, eliminating dust entry and easy maintenance; the control cabinet can be moved back and forth, left and right, for easy operation; the industrial display can be rotated at will, facilitating multi-angle observation.

Highlight 2: Tail distance - The distance left at the end of the equipment is longer, so that the beam and cutting head are as far away from the feeding area as possible, reducing the risk of collision with the cutting head when feeding.
