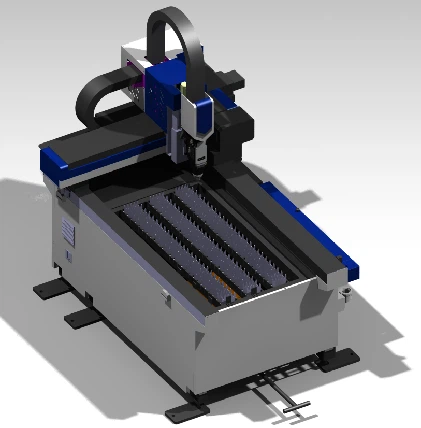

Medium Power 0612 Open Type Fiber Laser Cutting Machine

Qingyuan Laser is well-known as one of the largest and professional medium power 0612 open type fiber laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you medium power 0612 open type fiber laser cutting machine at low price.



Medium Power 0612 Open Type Fiber Laser Cutting Machine

Single platform series small format CNC fiber laser cutting machine, solves the small format material processing dilemma, adopts gantry moving structure, bilateral rack and pinion synchronous drive, stable and reliable movement, is the ideal choice for large format metal laser cutting!

Excellent beam quality: smaller focused spot, finer cutting lines, smooth cuts, beautiful appearance, no deformation, higher working efficiency, better processing quality.

▲ High stability: the world's top laser, compact structure, small size, fixed optical path, small energy loss, stable cutting quality.

▲ The optical path is not constrained, the fiber transmission loss is small, and the processing range can be maximized.

▲ Extremely low maintenance cost: no laser working gas; fiber optic transmission, no need for reflector lens; can save a lot of maintenance costs.

▲ Professional software can realize timely processing of all kinds of graphics and text, easy to use and convenient.

▲ Wider guideway support surface further optimizes the rigidity of the bed.

▲ Energy saving and environmental protection, perfect smoke and dust removal system.

▲ Low running cost, meet the needs of 24-hour industrial production.

Fully enclosed outsourced sheet metal, which can effectively isolate the fumes generated during cutting and protect the operator.

Z-axis using modular mechanism
The overall design of this unit is modular and machined after casting, so the product is characterized by high precision, high strength, high operational stability, and good sealing.
Mold casting and then machining, high precision and good strength.
Integration of the rail mounting base, integral machining, small installation error.
Screw drive, high precision, double-slider design, good stability.
In order to ensure the precision and stability of the machine during operation, the screw drive is adopted to ensure the precision during operation. At the same time, double sliders are used on the guide rails to ensure more stable operation and minimize the runout of the machine.
The organ cover is designed with imitation design, the gap is greatly reduced to ensure the internal sealing of the machine, improve the stability of operation and reduce the failure rate.

Product Parameter

Processing width and working range
Processing width	600mm*1200mm
Accuracy
X and Y axis positioning accuracy	±0.03mm/m
Repeatability of X and Y axes	±0.02mm/m
Speed
Dual-axis linkage positioning speed	≤90m/min
Maximum acceleration	≤0.8G
Weight and size
Maximum worktable load	200kg/m2
Overall dimensions (length, width and height)	4800mm*4000mm*2500mm (with drawer) 3000mm*4000mm*2500mm (without drawer)
