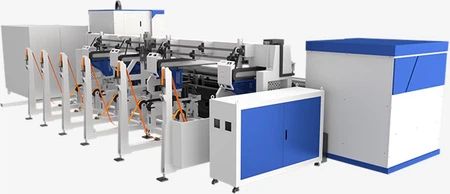

Semi-automatic Loading 0260 CNC Tube Pipe Laser Cutting Machine For Metal
We Supply Semi-automatic Loading 0260 CNC Tube Pipe Laser Cutting Machine for Metal.
Product Introduction
Semi-automatic Loading 0260 CNC Tube Pipe Laser Cutting Machine for Metal
Main parameters:
|
Min. length of single tube |
5000mm |
|
Max. length of single tube |
6000mm |
|
Tube side length or diameter |
20-150mmm |
|
Max. weight of single tube |
200kg |
|
Max. load of tube storage |
3000kg |

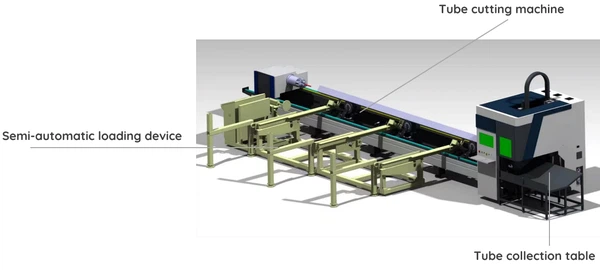

Feeding system
 |
Feeding system is for grabbing and feeding the tube to the tube cutting machine, it consists of driven chain, air cylinder, guide rail, chain wheels, etc. |
Work flow:
1. Material loading: a bundle of tubes to be loaded to the tube storage by manual.
2. Machine power-on: all parts reset.
3. Manual loading: tubes are pushed manually from storage to the chain, driven chain moves the tubes to the feeding system.
4. Sorting: when tubes move to the feeding device, sorting device moves up to make sure only one tube will be grabbed to the feeding device.
5. Feeding: feeding device moves the tube to the tube cutting machine.
6. Tube cutting machine clamps the tube for cutting.
