Low Cost Steel Tube And Plate CNC Fiber Laser Cutting Machine
Application material:Specially used for cutting 0.5mm-25mm carbon steel plate and pipe; 0.5mm-10mm stainless steel plate and pipe; galvanized plate and pipe; electrolytic plate and pipe; silicon steel and other thin metal materials, pipe diameter φ20mm-φ200mm.
Product Introduction

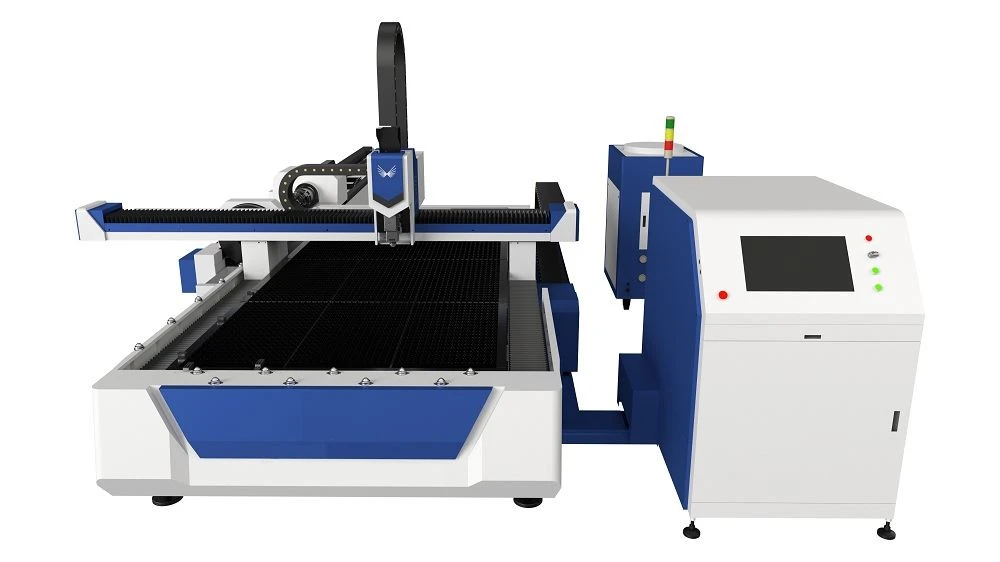

Pictures of Product

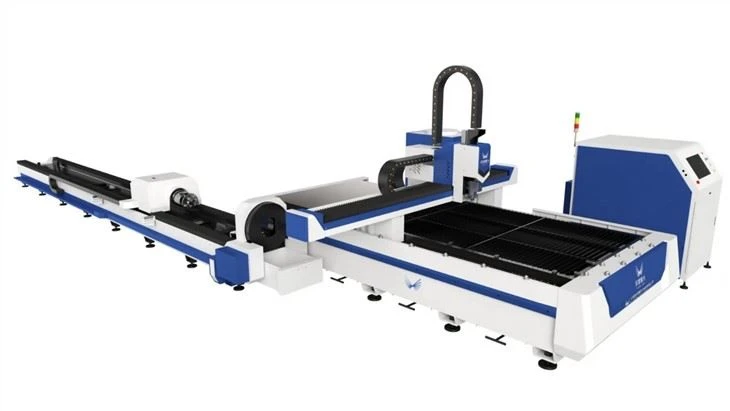

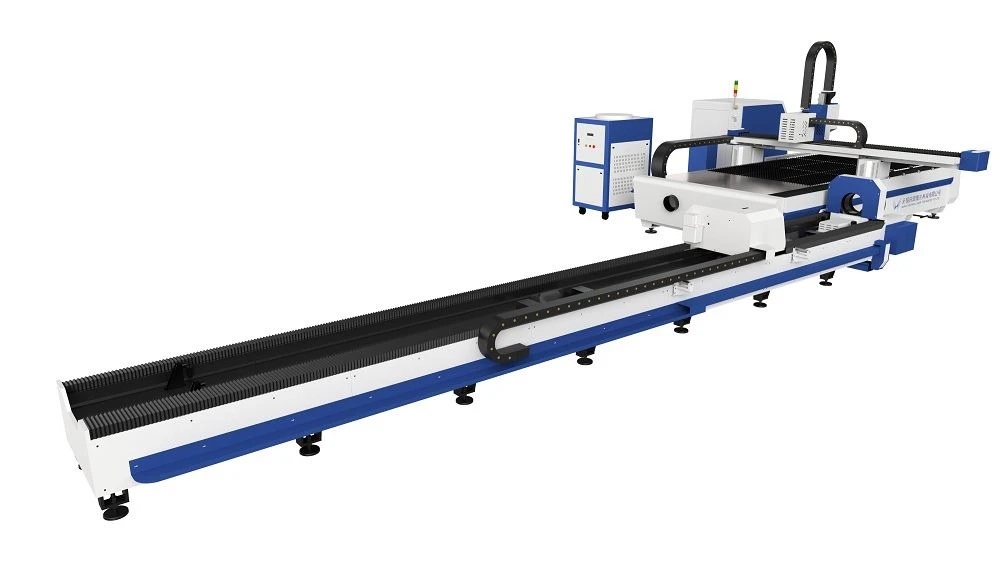

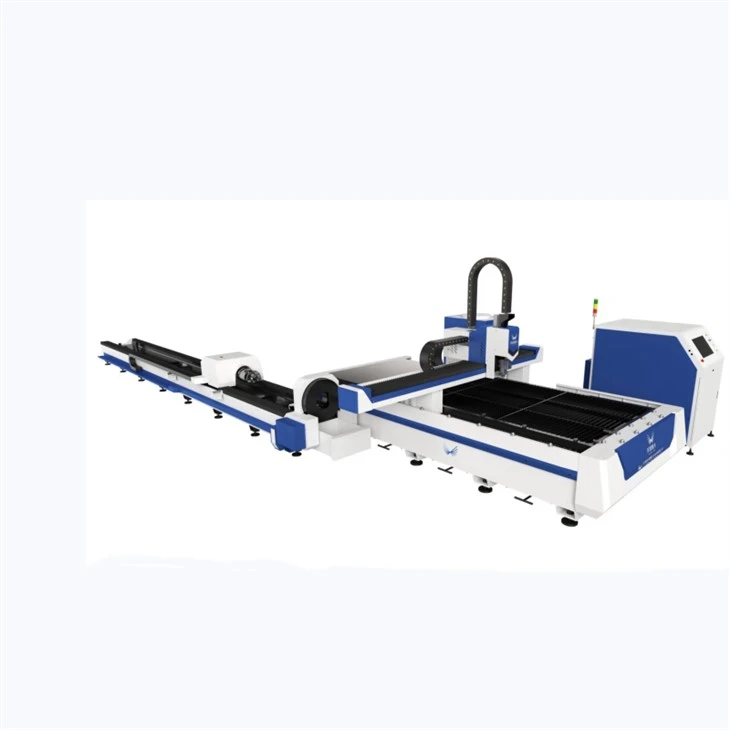

Low cost steel tube and plate CNC fiber laser cutting machine

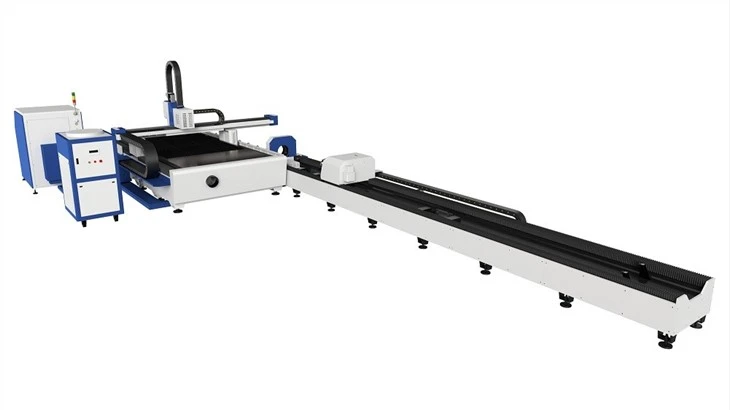

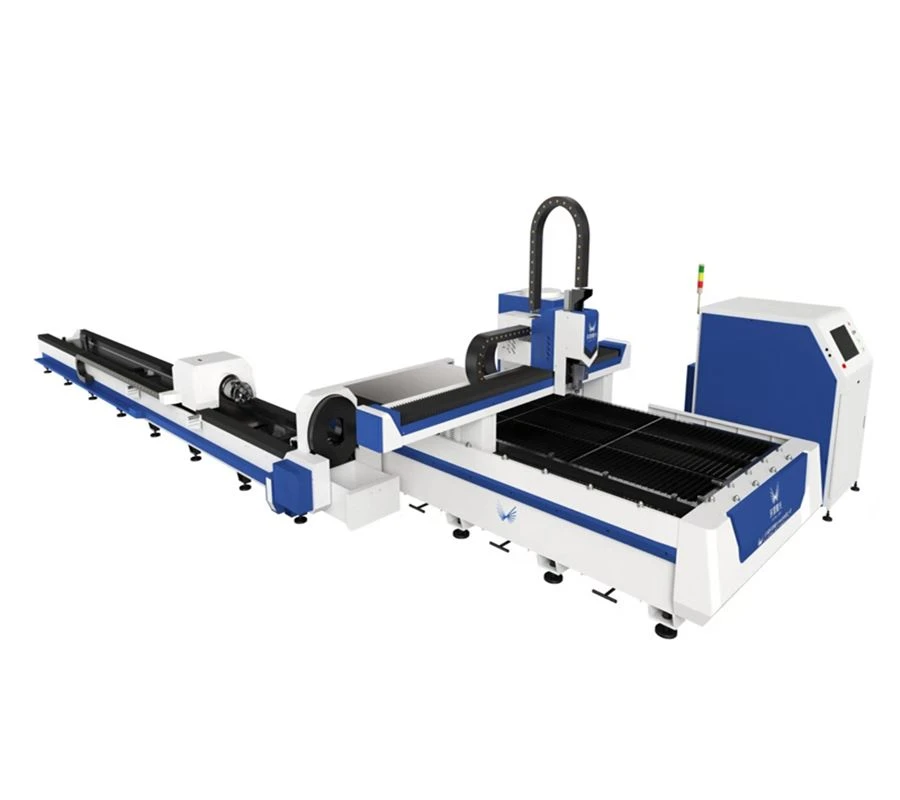

Low cost steel tube and plate CNC fiber laser cutting machine
●Designed for sheet abd pipe
●Elecrrical parts: Schneider
●Guarantee 20 years of normal use without deformation
Attached pipe:
Round pipe:20~219mm
Square Pipe:20*20~150*150mm
Length: 6m
Max Loading weight: 150kgs
Technical Parameter | ||
2 | Maximum Power | 1000W |
3 | Accelaration | 1.0G |
4 | Power Consumption | 16Kw |
5 | Max Speed | ≤90m/min |
8 | Max.Cutting Dimension | Single Open Type Table 1500*3000/4000/6000mm 2000*4000/6000mm 2000*6000/8000mm 2500*6000/8000mm |
Pipe: *Length 6m and 3m optional *Round pipe: 30~210mm(cutting thickness is same as sheet thickness) *Square pipe: 30*30~145*145mm(cutting thickness is 70% of sheet thickness because the cover thickness ) | ||
9 | Cutting Table Mechanical Accuracy： ±0.05mm | |
10 | X,Y,Z Repeated Positioning Precision：±0.02mm | |

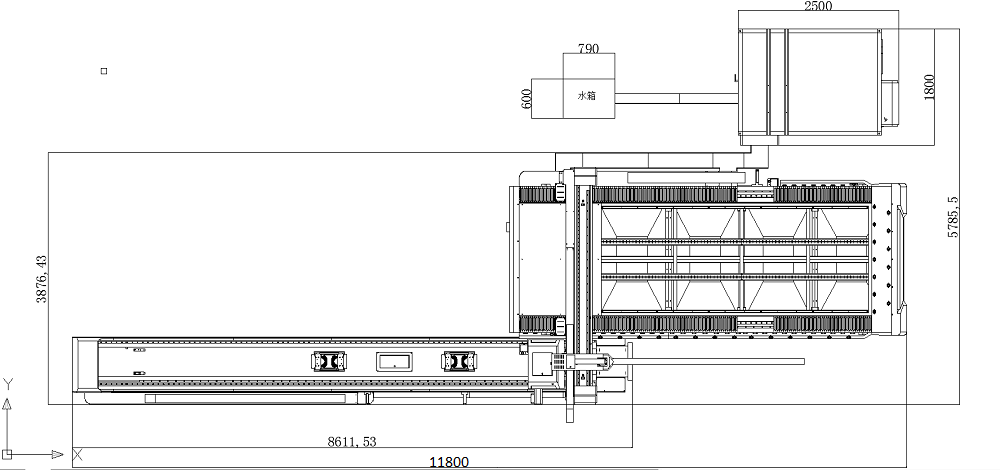

Machine Layout:

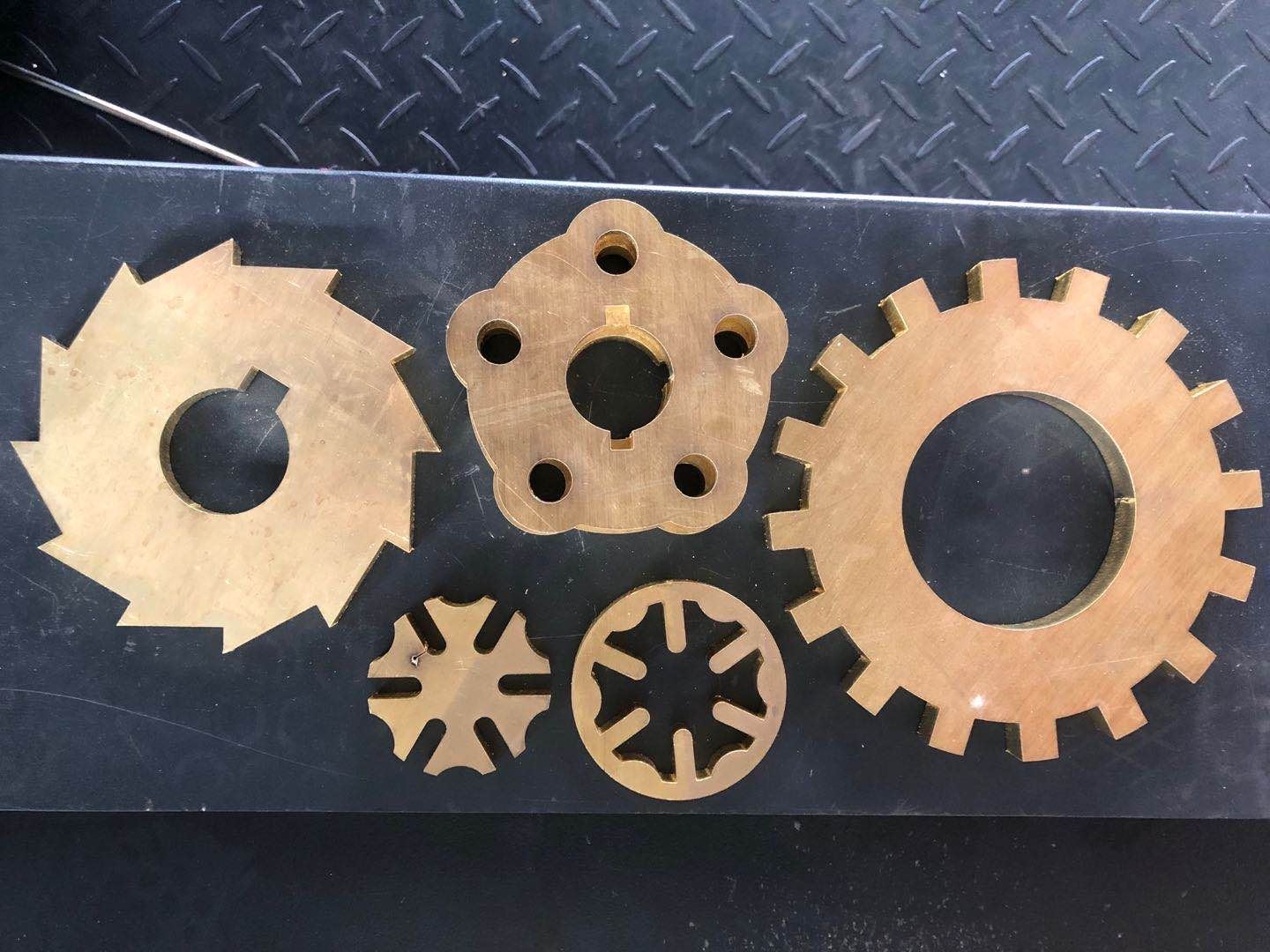

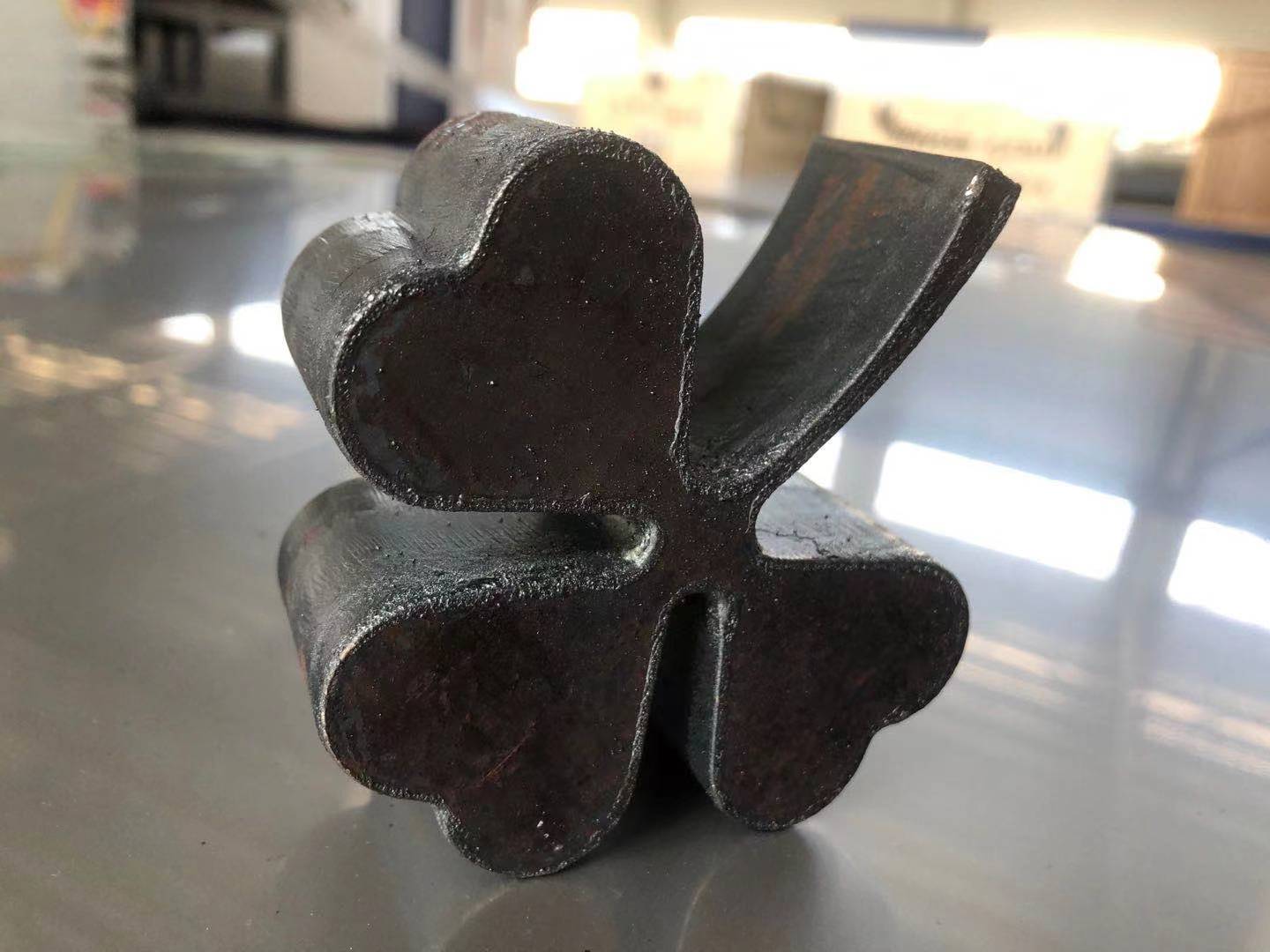

Sample
 |  |  |

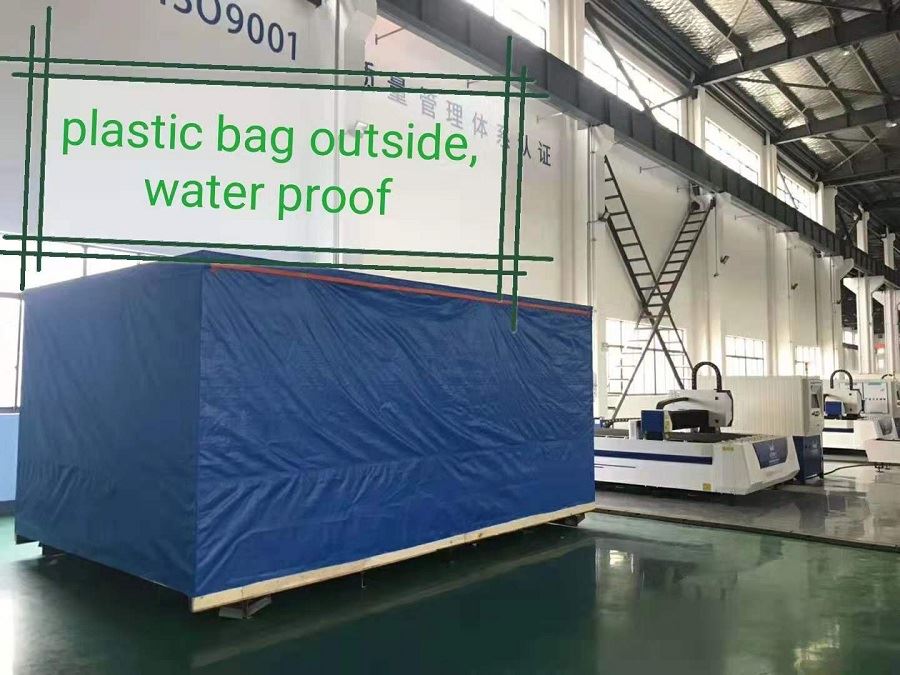

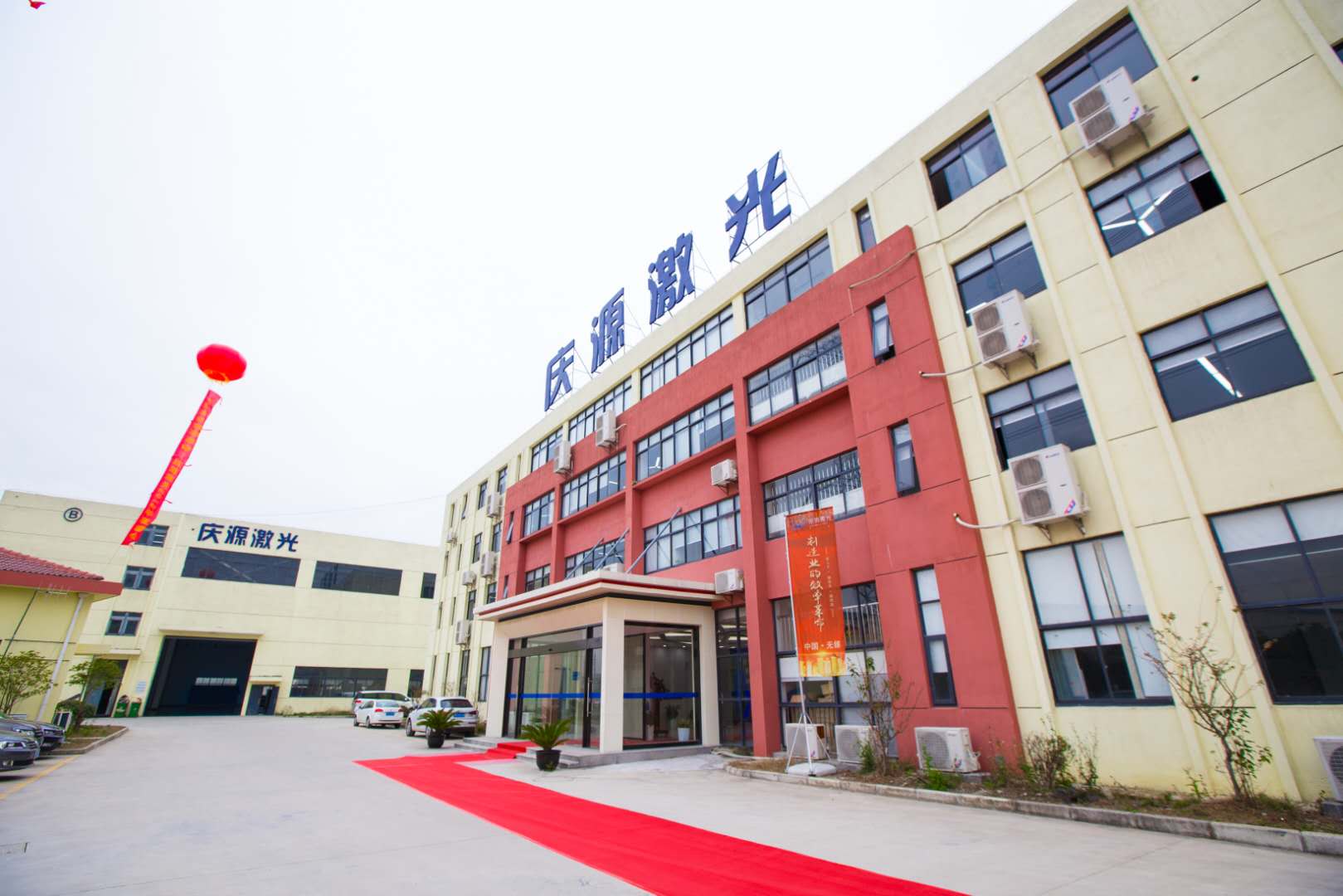

| Company Introduction | Packaging and Delivery | Application |
