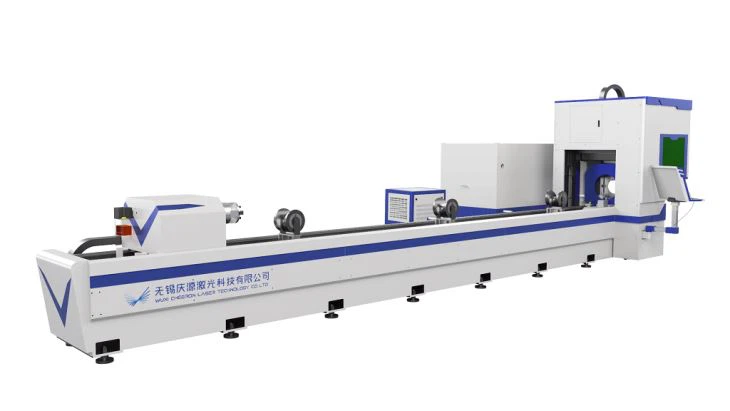

500W-8000W CNC Laser Cutter Heavy Fiber Laser Cutting Machine/CO2 Laser Cutting or Engraving Machine for Sheet Pipe Metal Carbon Stainless Steel Cutting Machine

500W-8000W CNC Laser Cutter Heavy Fiber Laser Cutting Machine/CO2 Laser Cutting or Engraving Machine for Sheet Pipe Metal Carbon Stainless Steel Cutting Machine

Functions : 1.Can cut a plurality of cylinders with different directions, different diameters of intersecting line hole, meet the vertical axis and axis condition branch director and no eccentric. 2. Can cut cylinder intersection line at the end of branch pipe, meet the pipe axis and the...

Product Introduction

Since the source of improving cost effectiveness is design, we constantly optimize product design of our CNC Pipe Laser Cutting Machine, 6m tube length cutting, Zero wastage tube cutting machine to reduce costs and enhance benefit. The change of development strategy urgently needs the synchronous follow-up of corporate culture construction. Our company has the production technology synchronized with the international level, good product research and development ability, mature business philosophy and good cooperation reputation.



Laser Source

IPG: 1000W

Raycus: 1000W

Mechanical   Parameter

Pipe Area

Round Pipe: 20-200mm

Square   Pipe: 20*20~140*140mm

Pipe Length

6000mm

Max Single Pipe Loading   Weight

260kgs

X Stroke

200mm

Y Stroke

6870mm

Z Stroke

265mm

W Stroke

Rotation Axis (high   precision rack transmission)

Y Axis Moving   Speed

Production   setting max 48m/min

Two chucks

Front Chuck: Pneumatic

Back   Chuck: Pneumatic

Max Chuck   Rotation Speed

120rpm

Max Cutting   Rotation Speed

100rpm

Wastage at end   of pipe

260mm

Cutting Table   Mechanical Accuracy

±0.08mm

XY Positioning Accuracy

±0.05mm/m

XY Repeat Positioning Accuracy

±0.02mm

Unloading

Optional, based   on customer’s production, we can suggest the suitable solution

Machine Total Weight

6.2tons without   unloading

Layout(L*W*H)

9320mm×3460mm×2730mm

Power   Parameter

Phase

3

Rated Voltage

380V

Frequency

50Hz/60Hz

Power   Consumption

21KW

Total Power   Protection Level

IP54


Through continuous innovation and tireless pursuit of service, we provide customers with innovative 500W-8000W CNC Laser Cutter Heavy Fiber Laser Cutting Machine/CO2 Laser Cutting or Engraving Machine for Sheet Pipe Metal Carbon Stainless Steel Cutting Machine and services that exceed their expectations. With strong brand awareness, unique marketing strategy and high cohesion team spirit, our company has stepped into the modern enterprise pattern and grown into a large international enterprise with strong competitiveness. Adhering to the principles of integrity, fairness, transparency and fraternity, we continue to shoulder the corporate social responsibility.
