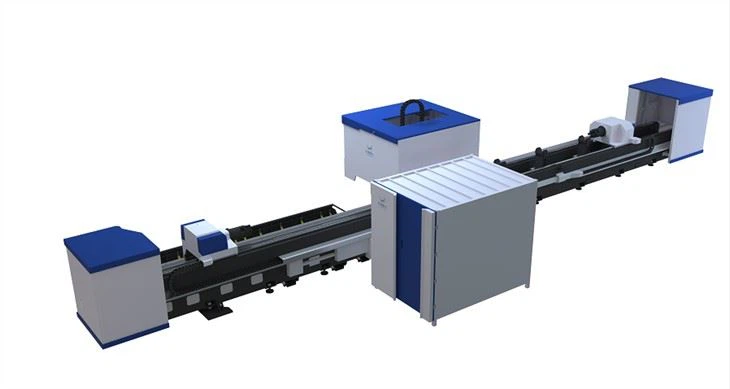

2kw CNC Pipe Laser Cutting Machine For Cutting 6mm Thickness Tube And Metal Pipes

2kw CNC Pipe Laser Cutting Machine For Cutting 6mm thickness Tube and Metal Pipes

Maximum running speed: 100m/min

Maximum speed: 100rpm

Maximum acceleration: 1.0G

Features:

1.The chuck has a self-adjusting center function for fast centering clamping. With automatic centering function.

2.The software can realize the real-time processing of various graphics and characters, which is simple and convenient to use.

3.Segmented feed cutting to improve cutting accuracy.

4.High cutting precision and high dimensional accuracy, the incision is flat and clean, without burrs, and the material loss is very small.

5.It can realize zero tailing cutting and improve material utilization rate.

Details:

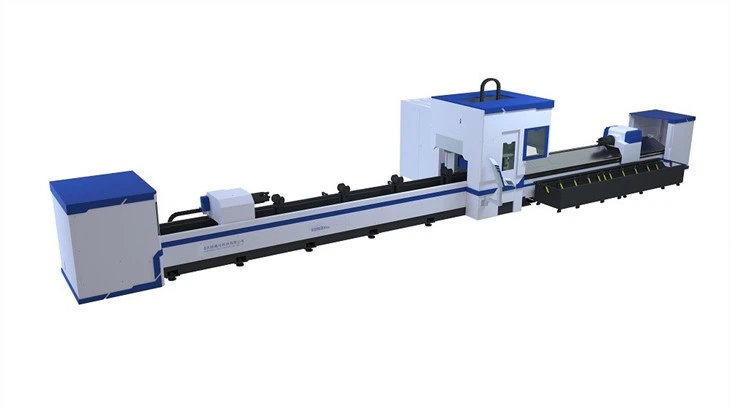

◆Using three pneumatic chucks, the diameter of the chuck is 220MM and 350MM to choose from, to meet different processing requirements. The clamping force is stable, and the phenomenon of falling off will not occur, and the structure of the pneumatic chuck is simple, and the maintenance and repair are also very convenient.

◆The three chucks are equipped with the bus system of Bochu 5000, which adopts the bus servo motor, which has faster dynamic response and higher precision.

◆The three chucks are equipped with a follow-up support as standard. When cutting the pipe, the support will float in real time with the rotation of the pipe, so as to solve the problem of fluttering and falling of the small pipe. Complete automation of blanking.

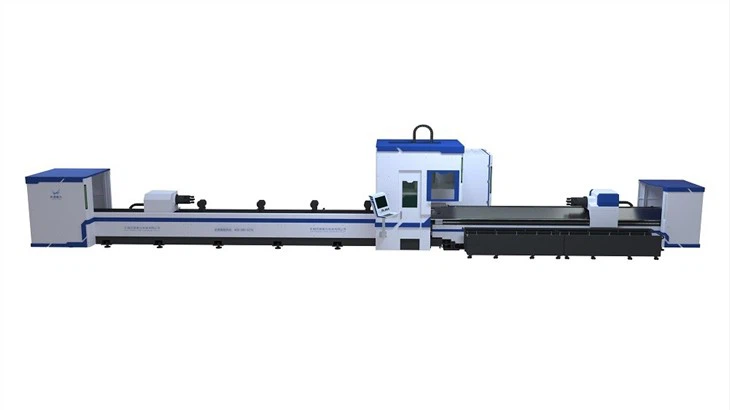

◆The three-chuck standard adopts the design of loading 6 meters and cutting 4 meters, the maximum effective cutting length can reach 4 meters, and when the last pipe is cut, the third chuck will pull the pipe out of the middle card. Action, can fully realize automatic cutting without manual intervention. At the same time, the unloading area comes standard with receiving and unloading, and there is no need to manually collect materials one by one.

Unique advantages of lasers:

●Photoelectric conversion efficiency, up to 30% to 40%;

●Excellent pulse power stability;

●Long service life, high precision, pump source service life > 100,000 hours;

●High beam quality, faster speed and better effect;

●The semiconductor fiber is used as the laser generating medium, no laser gas is needed, and it is green and environmentally friendly;

●Small size, light weight, maintenance free.

Applied Materials:

It is professionally used for cutting special-shaped metal pipes with thickness of 0.5mm-10mm, such as round, square and rectangular pipes; it can be used for round pipe diameter φ20mm-φ220mm, square pipe side length 20mm-150mm, and pipe length 6000mm.
