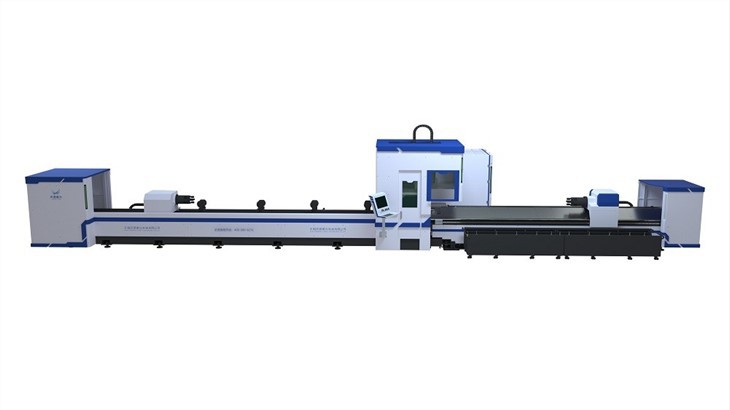

Burr Free Cnc Pipe Laser Cutting Machine For Metal Iron Stainless Steel Carbon Steel Round And Square Tube/pipe
video
Burr Free Cnc Pipe Laser Cutting Machine For Metal Iron Stainless Steel Carbon Steel Round And Square Tube/pipe

Burr Free Cnc Pipe Laser Cutting Machine For Metal Iron Stainless Steel Carbon Steel Round And Square Tube/pipe

We Supply Burr free cnc pipe laser cutting machine for metal iron stainless steel carbon steel round and square tube/pipe.

Product Introduction

Qingyuan Laser is well-known as one of the largest and professional burr free cnc pipe laser cutting machine for metal iron stainless steel carbon steel round and square tube/pipe manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you burr free cnc pipe laser cutting machine for metal iron stainless steel carbon steel round and square tube/pipe at low price.



Burr free cnc pipe laser cutting machine for metal iron stainless steel carbon steel round and square tube/pipe

Hfc47f0167f3049028cc17affa7a70c7eR
Features:

-0 TAILING;
-The chuck has a self-regulating center function;
-With auto center searching function;Segmented feeding cutting to improve cutting accuracy
-The three-chuck structure and the double clamping function of the middle chuck can assist in correcting the deformation of the small pipe and improve the cutting accuracy
-Zero tailing wastage,high material untilization rate;
-High-speed automatic cutting.

Application material:

Professional for cutting round, square, rectangular and other shaped metal pipes of thickness 0.5mm-10mm; can be applied to round pipe diameter φ20mm-φ220mm, square pipe side length 20mm-150mm, pipe length 6000mm.

Product Parameter:

Model

2060

Max Cutting Speed

60m/min

X/Y Positioning Accuracy

±0.08mm

Max Rotating Speed

100rpm

X/Y Positioning Repeated Accuracy

±0.05mm

Max Acceleration

0.8G

Pipe Cutting Accuracy

±0.3mm

Power Consumption

23.5kW

Operating Voltage

380V/50Hz

Machine Running Temperature

0℃-40℃

Machine Dimension(mm)

16000x4400x2800

Machine Running Humidity

<90℃

Laser Power

1500w-4000w

Pipe Diameter(mm)

Round tube 20-219 Square tube 20-150

product-1-1

product-1-1
