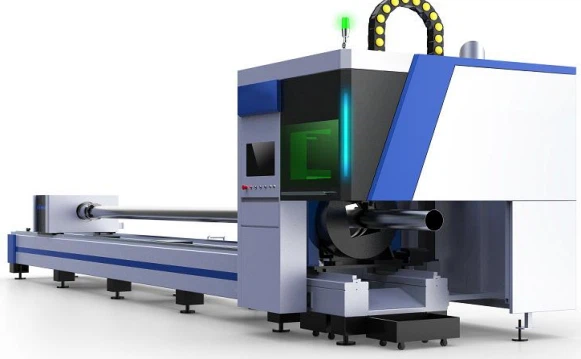

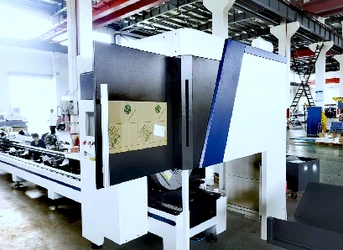

2 Chuck Metal Tube/Pipe Laser Cutting Machine



2 Chuck Metal Tube/Pipe Laser Cutting Machine

Mechanical Parameter

Pipe Area		Round Pipe: 20-220mm Square Pipe: 20*20~170*170mm
Pipe Length		6000mm and 9000mm
Max Single Pipe Loading Weight		200kgs
X Stroke		200mm
Y Stroke		6870mm
Z Stroke		265mm
Min Tailing Wastage		130mm
Y Axis Moving Speed		Production setting max 48m/min(max 60m per minute)
Two chucks		Front Chuck: Pneumatic Back Chuck: Pneumatic
Positioning Accuracy		±0.03mm
Repeat Positioning Accuracy		±0.02mm
Machine Total Weight		4 tons without unloading
Layout(L*W*H)		9300mm×2800mm×2600mm



Power control system designed to attach to main machine

Less space

Simple for installation

Strong Table Frame

Larger chuck cutting ability

Optimized design chuck with larger cutting ability

R 20-240mm

S&R: 160*160mm

The left and right plate will be closed during cutting which will avoid scraps spattered into chuck, which will greatly reduce the mechanical structure failure rate.

Variable diameter pneumatic supporting roller

3pcs of rollers

the variable scales on roller is easy for operator to make adjustment according to production tube size

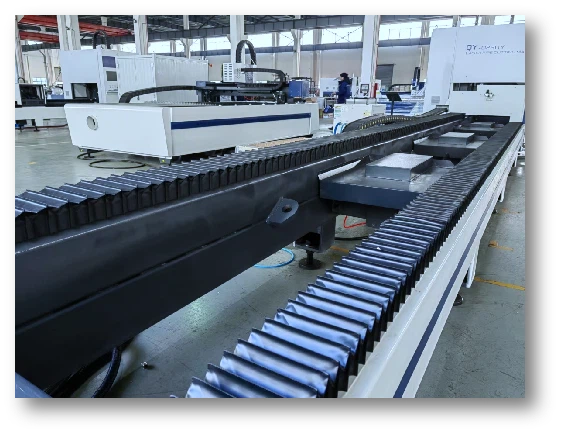

Full Cover For Both Y Axis

Dust proof High precision production

Main Power Switch And Gas Control In Front

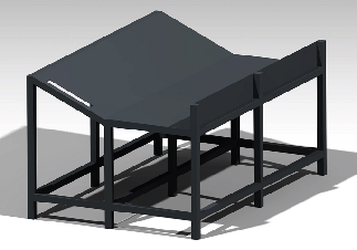

Unloading

Semi-Auto Loading System

The machine is designed with half automatic loading system compatible

Semi-Auto Loading System

loading for round , square and rectangle only, other shape need to be manual loading

L：5000-6000mm

Diameter or Section side length：20-150mm

Max single weight：200kg

Max loading weight：3000kg

Standard/Closed Type

Modular/Non Closed Type
