Specification For 1.5Kw Laser Tube Cutting Machine
QY Laser is a manufacturer dedicated to only fiber laser cutting machine for 1000W to 20000W since 2008!
QY is serious about one thing:
making better metal cutting machines for customers
QY Laser Factory Visiting
Our Machine Range
Patents & Intellectual Property Rights

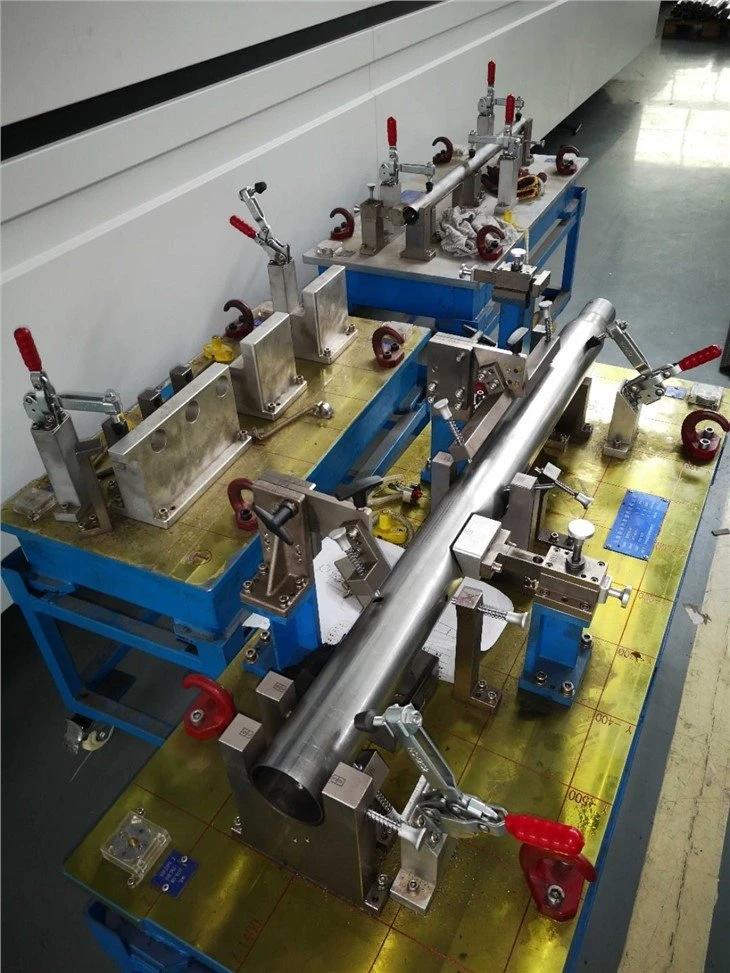

Machine HD Photo
Application: widely used in field fitness, furniture, shelf, building material
Technical Parameter
(一）、Main Electrical Collocation | ||
Part Name & Descriptions | remark | |
Laser | 1500W Raycus(China Brand） 1500W IPG（German Brand） | Optional |
Optical system | Import Media diaphragm | UK |
Cutting head | Raytool Autofocus | Swiss brand |
Reducer | Motoreducer | French |
Water chiller | Over-flow protection, temperature stability ± 0.5 ℃ | Wuhan, China |
Rack&Pinion | Bevel type : ROR | German |
Button Module | Schneider | France |
AC Contactor | Schneider | France |
Solenoid Valve | Airtec | Taiwan |
Auto-sensor | Accuracy ±0.1mm | China |
PC System | Industrial control | |
X axis servo | Fuji | Japan brand |
Y axis servo | Fuji | Japan brand |
Z axis servo u | Fuji | Japan brand |
W1 and W2 | Fuji | Japan brand |
Auto Gas Valve | SMC(for O2) | Japan |
Control system | Software: Tubepro Controller: FScut3000S Nesting software: TubesT 3D drawing file format .iges from solid works, AUTOCAD 3D or related programmer | Shanghai, China |
I/O Card | 32 points | China |
Table | Strictly make table with hardening, tempering treatment to ensure no deformation during long time production | QY, China |
Laser Source | IPG: 1500W |
Raycus: 1500W | |
Mechanical Parameter | |

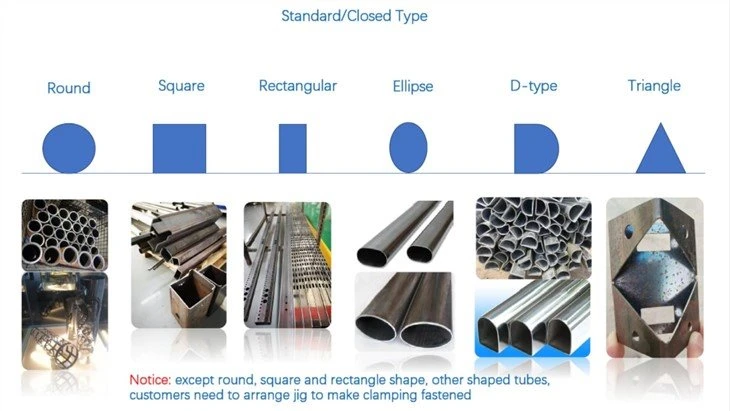

Pipe Area | Round Pipe: 20-219mm Square Pipe: 20*20~150*150mm |
Pipe Length | 6000mm |
Max Single Pipe Loading Weight | 200kgs |
X Stroke | 200mm |
Y Stroke | 6870mm |
Z Stroke | 265mm |
W Stroke | Rotation Axis |
Y Axis Moving Speed | Production setting max 48m/min(max 60m per minute) |
Two chucks | Front Chuck: Pneumatic Back Chuck: Pneumatic |
Max Cutting Rotation Speed | 120rpm |
Cutting Table Mechanical Accuracy | ±0.08mm |
Positioning Accuracy | ±0.05mm |
Repeat Positioning Accuracy | ±0.02mm |
Tailing wastage | 70-80mm |
Unloading | Optional, based on customer’s production, we can suggest the suitable solution |
Machine Total Weight | 5.5 tons without unloading |
Layout(L*W*H) | 9300mm×2800mm×2600mm |
Power Parameter | |
Phase | 3 |
Rated Voltage | 380V |
Frequency | 50Hz/60Hz |
Power Consumption | 21KW |
Total Power Protection Level | IP54 |
Machine Layout
Machine Loading
