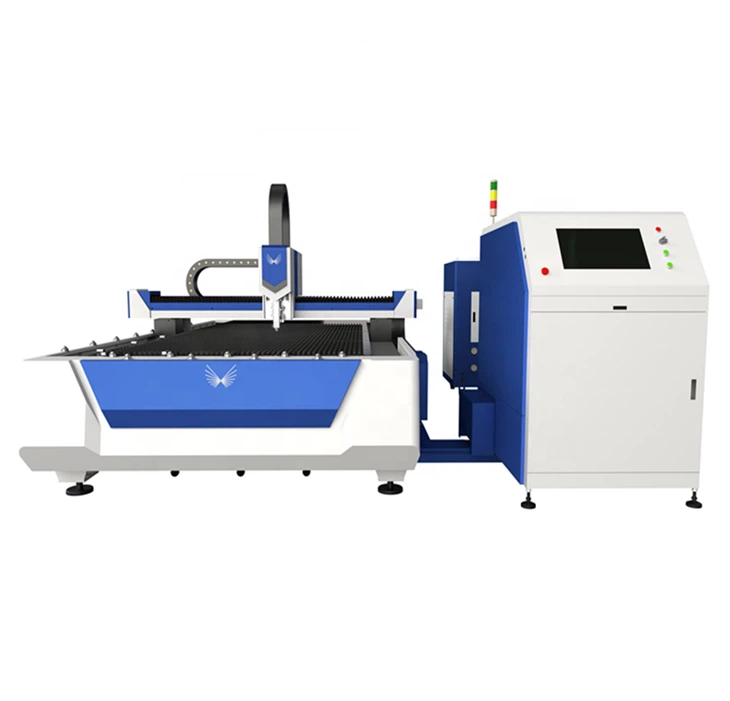

One Table Open Type 3Kw Metal Sheet Laser Cutting Machine
We Supply One Table Open Type 3Kw Metal Sheet Laser Cutting Machine.
Product Introduction
One Table Open Type 3Kw Metal Sheet Laser Cutting Machine
Technical Parameter
|
Laser Wavelength |
1070nm |
|
Maximum Power |
3000W |
|
Max Acceleration |
1.0G |
|
Power Consumption |
20Kw |
|
Max Speed |
Complex speed ≤90m/min |
|
Cutting Thickness |
MS: max 20mm, mass production 16mm;
SS: max 10mm, mass production 8mm; |
|
Cutting Dimension |
Single table open type
1500*3000mm， 1500*6000mm |
|
Cutting Table Mechanical Accuracy： ±0.05mm |
|
|
X,Y Repeated Positioning Precision： ±0.03mm |
|
|
Power Supply: Three-phase 5 wires AC 380V±5%，50Hz/60HZ±1% |
|
Detailed introduction
 |
 |
 |
|
Independent Power Box with cooling unit * with all electrical parts including PC, laser source installed inside, which will keep parts working stably even 24hours continued working, with cooler the machine will be working very stably with high cutting accuracy. * dust proof, heat isolation * prolong lifetime of electrical parts |
 |
 |
Our Machine Advantages
 |
Safety Cover All cables between machines and chiller and laser are covered Tidy and SafeSafety Cover All cables between machines and chiller and laser are covered Tidy and Safe |
| Three-way gas control Separated O2, N2 and air |  |
 |
 |
 |
|

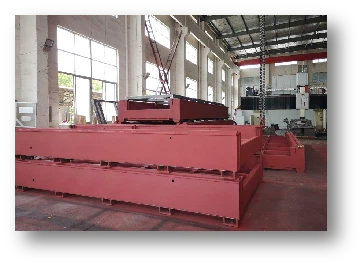

The main frame adopts a gantry beam structure, and the table bed is produced by welded by steel plates, and the stress is eliminated by T6 heat treatment, so that the strength, rigidity, servo drive acceleration and deceleration and numerical control system are highly matched. No deformation in 20 years’ production |
 |
|
 |
 |
 |
Hot Tags: one table open type 3kw metal sheet laser cutting machine China, suppliers, manufacturers, price
