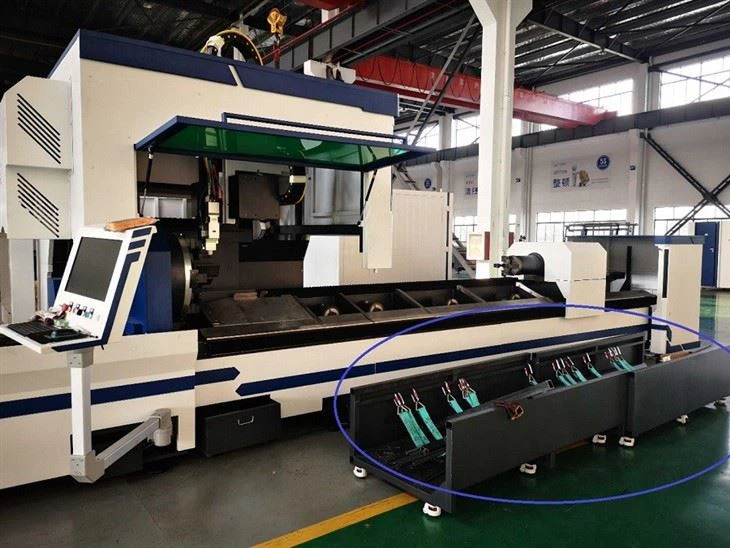

Cost-effective CNC Fiber Laser Cutting Machine Tube/Pipe

Qingyuan Laser is well-known as one of the largest and professional cost-effective cnc fiber laser cutting machine tube/pipe manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you cost-effective cnc fiber laser cutting machine tube/pipe at low price.



Cost-effective CNC Fiber Laser Cutting Machine Tube/Pipe

Features
●Strong dynamic performance, greatly improving cutting efficiency;
●High -speed fully automatic CNC laser cutting machine, high -quality laser cutting can be carried out on round pipes, square tubes and other profiles;
●Automatic feed, diversified collection, neat and efficient, highly automated integration.

Technical Parameter

Max Cutting Speed	100m/min	Laser Power	1500W-3000W
Max Acceleration	1.2G	Machine Rated Power	32KW
X/Y Positioning Accuracy	±0.03mm/m	Machine Running Temperature	0℃-40℃
X/Y Repeated Positioning Accuracy	±0.02mm	Machine Running Humidity	﹤90%
Operating Voltage	380V/50Hz	Transmission method	Precision rack and pinion

Application Material
●It is used to cut 1-10mm of round tube and square tube and other alien metal tubes. It can be suitable for a variety of pipes with a variety of pipes with a variety of pipe ports of 20-port and 200mm.

Series Products

Model	0160	0260
Pipe Length(mm）	6000	6000
Exterior Dimensions(mm)	12500*4800*2800	12500*4800*2800
Pipe Diameter(mm)	Round tube Φ20-Φ200, square tube side length 20-200	Round tube Φ20-Φ200, square tube side length 20-200
