Exchange Table Fiber Laser Metal Cutting Machine Laser Cutter

Qingyuan Laser is well-known as one of the largest and professional exchange table fiber laser metal cutting machine laser cutter manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you exchange table fiber laser metal cutting machine laser cutter at low price.



Exchange Table Fiber Laser Metal Cutting Machine Laser Cutter

Full enclosure design; safe and efficient

Dual exchange table
Dual high and low working tables, saving loading and unloading time.
Improve production efficiency and save labor cost.

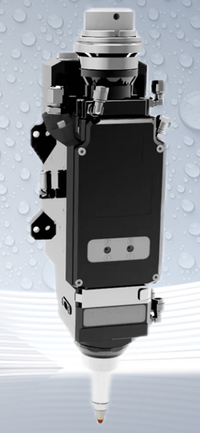

Cutting head
High quality, strong combination

High-end intelligent bus system

With stable and reliable, easy deployment, easy debugging, production safety, rich functions, excellent performance.

Cutting Samples

Product Parameter

Model	1530	2040	2060	2560	2580	25120
Processing width(mm)	1500*3000	2000*4000	2000*6000	2500*6000	2500*8000	2500*12000
Appearance size (mm)	9000*4800*2200	11000*6000*2200	15000*6000*2200	15500*7500*2500	20000*7500*2500	29000*9800*2400

Maximum running speed	140m/min
Maximum acceleration	1.5G
X/Y positioning accurac	+0.03mm/m
X/Y Repeat Positioning Accuracy	±0.02mm/m
Pipe cutting accuracy	±0.3mm
Working voltage	380V/50Hz
Laser power	1500W-30000W
Machine power	8=20KW
Machine operating temperature	0°C-40°C
Machine operating humidity	＜ 90%
Transmission mode	Precision rack and pinion
