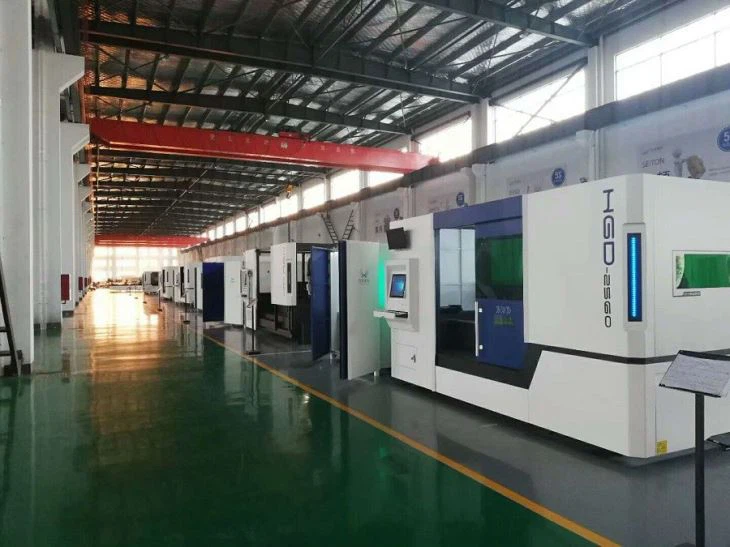

Exchange Table Laser Cutting Machine
We supply exchange table laser cutting machine.
Exchange table laser cutting machine will save metal sheet loading and unloading time,and safety for operators.
The machine power can be from 1000W~15000W, for metal sheet cutting thickness mild steel till 30mm, and stainless steel till 30mm.
Product Introduction
Exchange Table Laser Cutting Machine
The advantages of our laser cutting machine
1. Air conditioner room: with all electrical parts and laser source inside, which will keep parts working stably even 24hours continued working, prolong lifetime of electrical parts, dust isolation
2. All machine tested by interferometer, to ensure the machine accuracy
3. Exchange table, frame with copper protection cover to protect the frame welded to machine main body not burned during cutting (for more than 2Kw) |
(一）、Main Electrical Collocation | ||
Part Name & Descriptions | remark | |
3000W Laser Generator | IPG（German） | German Brand |
Optical system | Import Media diaphragm | UK |
Laser cutting head | Quelle with Auto focus Precitec(German brand) autofocus Optional | |
Mechanical driving system | Rack and Pinion Bevel type, Atlanta | German |
High precision auto-sensor | Accuracy ±0.1mm | China |
PC System | Industrial control | EVOC, Taiwan |
X axis servo unit | 2.2Kw servo single driving | Yaskawa, Japan |
Y axis servo unit | 4.4Kw*2 servo dual driving | Yaskawa, Japan |
Z axis servo unit | 750W for head with auto focus | Yaskawa or Fuji, Japan |
Cutting Software | Cypcut (loop model) (support English language, file formate .dxf, PLT, Gerber, AI and so on) | Shanghai, China |
Table | 1. Extruded aluminum gantry beam 2. Strictly make table with hardening, tempering treatment to ensure no deformation during long time production Body welded sheet thickness 16mm for 2060 | QY, China |
Machine Packages and Loading
