Pipe Tube Metal Laser Cutting Machine
We supply Pipe Tube Metal Laser Cutting Machine.
QY Laser is one of the top ten manufacturer in China,dedicated to only fiber laser cutting machine since 2008,specialized in full range of laser cutting machine,so far we have produced more than 5800sets of laser cutting machine for local and oversea market,if you have plan for a laser cutting machine for your cutting production, we'll be glad to provide more information for the machine.
Product Introduction

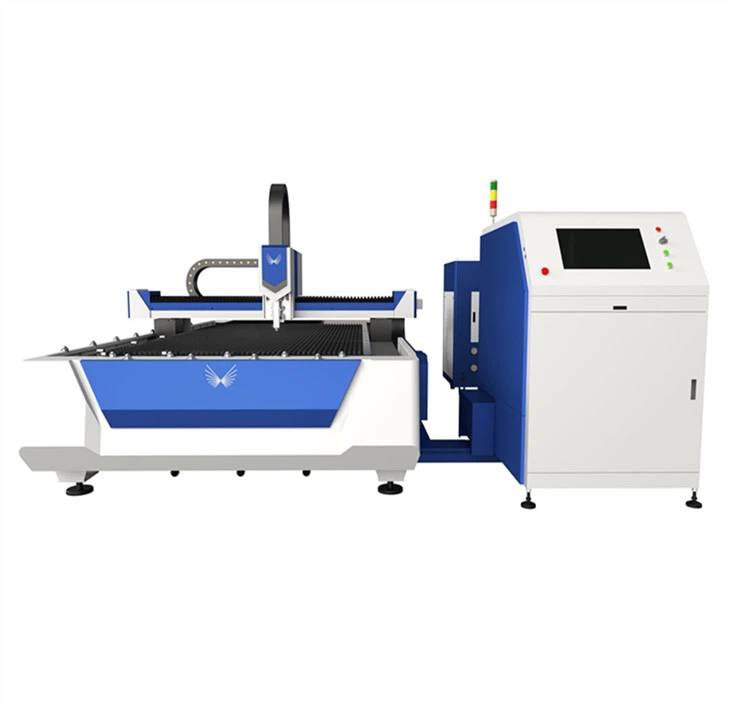

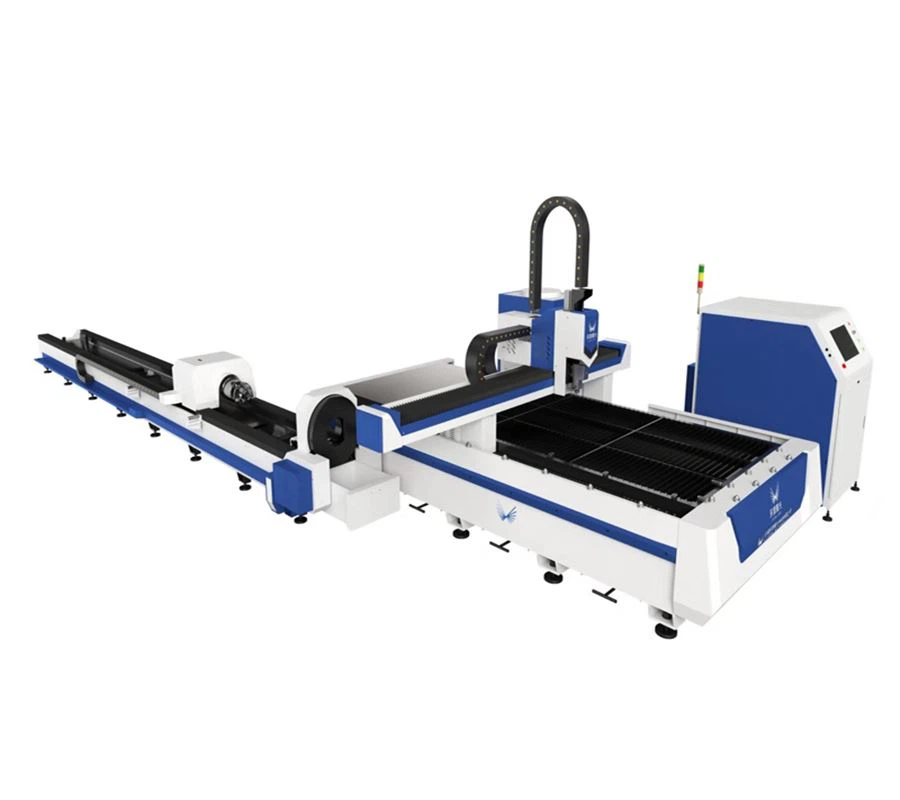

Pipe Tube Metal Laser Cutting Machine
 |  |
Fiber tube and plate working processing combination, wide processing range, speed adjustable electric rotary shaft, saves cost and space. Best choice for professional processing of tubular construction! For this machine , it can cut sheet metal , square tube , round tube , triangle tube.
Technical Parameter:
Technical Parameter | ||
1 | Accelaration | 1.0G |
2 | Power Consumption | 16Kw |
3 | Max Speed | ≤90m/min |
4 | Cutting Thickness | Sheet Thickness: MS: max 12mm and mass production 10mm SS: max 5mm and mass production 4mm Round Pipe: Same as sheet thickness Square pipe: 70% of sheet thickness |
5 | Max.Cutting Dimension | Single Open Type Table 1500*3000/4000/6000mm 2000*4000/6000mm 2000*6000/8000mm 2500*6000/8000mm |
Pipe: *Length 6m and 3m optional *Round pipe: 30~210mm(cutting thickness is same as sheet thickness) *Square pipe: 30*30~145*145mm(cutting thickness is 70% of sheet thickness because the cover thickness ) | ||
6 | Cutting Table Mechanical Accuracy：±0.05mm | |
7 | X,Y,Z Repeated Positioning Precision：±0.02mm | |
Cutting Samples:
 |  |  |
 |  |  |
