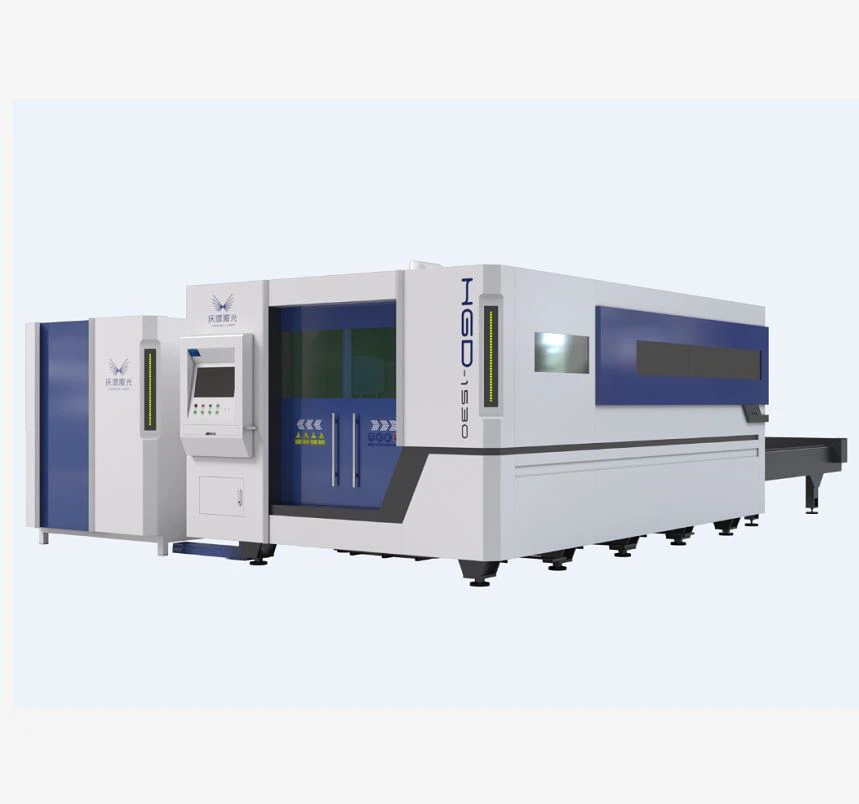

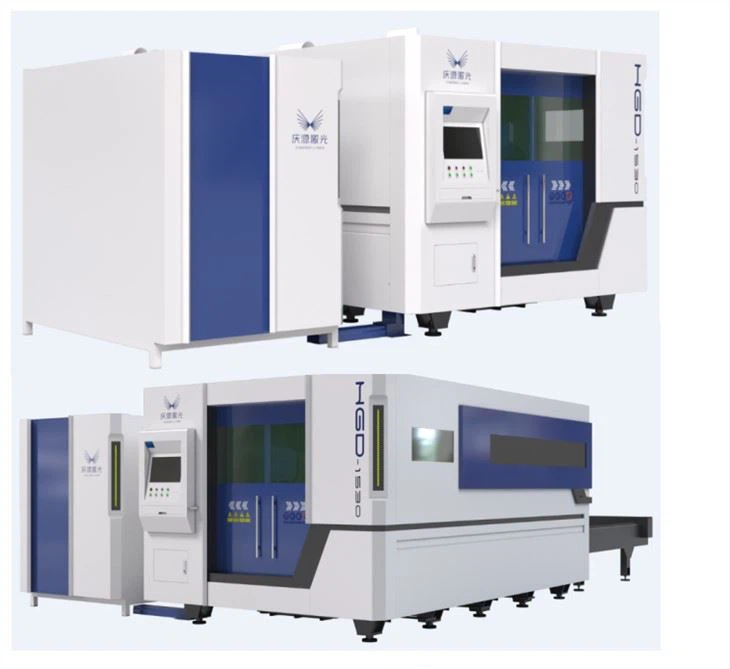

Fiber Laser Cutting Machine Price Laser Cutter 1500w 2kw 3kw 4kw 6kw 1530 Fiber Laser Cnc Sheet Metal Ss Stainless Steel

Automatically adjust the laser head

The laser head adopts two-point centering adjustment, and the focusing is driven by an imported motor. The efficiency of the perforation is significantly improved. The protective lens is installed in a drawer type, which is easy to replace.

By setting parameters, the focus scale can be flexibly adjusted without manual focus adjustment; the operation is convenient. Control the up and down height, automatically adjust the focus, quickly complete the high-speed perforation of thick plates and automatically cut materials of different thicknesses.

beam

The gantry beam is designed with light weight, good rigidity, good dynamic performance and stable operation. The fully enclosed dust-proof structure greatly increases the service life of the rack and pinion and linear guide rails inside. Corrosion resistance, oxidation resistance, good toughness, etc.

It is light in weight, convenient for high-speed movement during processing, and is highly flexible.

machine tool

The machine bed adopts an integral welded structure, rough machining after annealing to eliminate internal stress, and finishing after secondary vibration aging treatment, which greatly improves the stability of the machine tool. The upper side of the main beam of the bed is paved with composite armor, which effectively improves the influence of the high temperature generated during high-power laser cutting operations on the overall structure of the frame; there is a smoke outlet under the bed, and the smoke is automatically smoked through the smoke exhaust pipe, which can make the cutting process The generated smoke and dust can be easily discharged outdoors, which improves the working environment; the entire working area adopts a fully enclosed enclosure, which is reasonable in safety protection
