Hollow Track Cnc Fiber Laser Cutting Machine For Metal Sheet

Qingyuan Laser is well-known as one of the largest and professional hollow track cnc fiber laser cutting machine for metal sheet manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you hollow track cnc fiber laser cutting machine for metal sheet at low price.

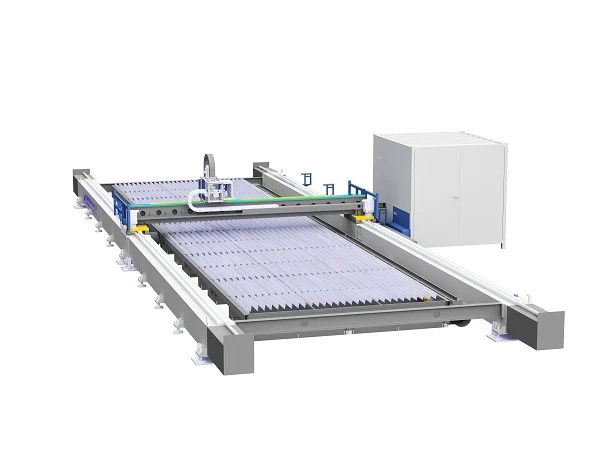

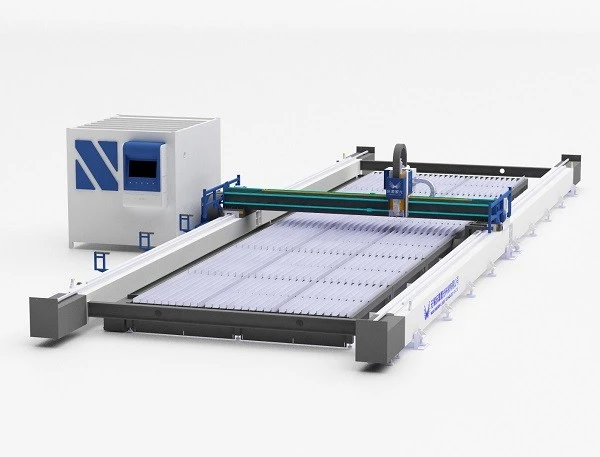

Hollow Track CNC Fiber Laser Cutting Machine for Metal Sheet

Features:
1.Equipped with laser source over 10000 watts, it can meet the requirements of high dynamic performance, high cutting accuracy, and high cutting speed cuting.
2.Provide flexibility in handing large size materials, segmented and spliced table bed, and the table size can be customized according to customers' requirements;
Heavy-duty thermal isolation hollow table bed: hollow bed and segmented modular workbench. The table bed will not deform after long-term operation,
improving the life time of the equipment.
3.The right side of the table bed is equipped with a double row air blawing device, which, in conjunction with the left exhaust fan. Right side blow and left side absorb, easily removing smoke and dust while cutting, and creating a clean working environment for workers.
4.Following dust removal structure design requires low air volume, low energy consumption,and low operating cost. Simultaneously following the cutting area for centralized dust removal,the smoke and dust removing is efficitive.
5.Multiple types of bevel cutting can be machined (optional) to achieve 0-45* bevel cutting, and various types of bevel such as V-shaped, X-shaped,Y-shaped.etc.can be machined.
6.Low operating costs to meet 24-hour industrial production needs.

Technical Parameter:

Max Cutting Speed:50m/min

Laser Power:6000W-80000w

Max Acceleration:0.5G

Power Consumption:20KW

X/Y Positioning Accuracy:±0.03mm/m

Machine Running Temperature:0℃-40℃

X/Y Repeated Positioning Accuracy:±0.02mm

Machine Running Humidity:﹤90%

Operating Voltage:380V/50Hz

Transmission:Precise rack and pinion

Applicable material:

Professional for cutting various metal materials such as 0.5-100mm carbon steel plate, 0.5-100mm stainless steel plate, gaivanized plate,electrolytic plate, silicon plate,0.5-100mm aluminum alloy0.5-30mm copper, etc.(thickness and material are related to lasers)
