Specification Of G20 For 15Kw
Air conditioner room
with all electrical parts and laser source inside
Heat isolation、Dust Isolation、Fire Proof
which will keep machine working stably even 24hours continued working, and prolong
lifetime of electrical parts
Product Introduction
Specification For 15Kw Laser Cutting Machine
QY is serious about one thing:
making better metal cutting machine for customers
 | ||||
 |  | |||
Technical Parameter
(一）、Main Electrical Collocation | ||
Part Name & Descriptions | remark | |
15KW Laser | IPG（German） | German Brand |
Cutting Head | Precitec Autofocus | German Brand |
Reducer | Shimpo | Japan |
Water chiller | Over-flow protection, temperature stability ± 0.5 ℃, green two-cycle water-cooled machine, titanium evaporation control cold | Wuhan, China |
Mechanical driving system | Atlanta or ROR, Rack&Pinion, Bevel type | German brand |
Button Module | Schneider | French brand |
Guide Rail | Hiwin | Taiwan brand |
Solenoid Valve | Airtec | Taiwan |
Auto-sensor | Accuracy ±0.1mm | China |
PC System | Industrial control | EVOC, Taiwan |
X axis servo | Ethercat motor | Yaskawa, Japan |
Y axis servo | Ethercat motor, dual driving | Yaskawa, Japan |
Z axis servo | Ethercat motor | Yaskawa or Fuji, Japan |
Electric Parts | Schneider | France brand |
Controller | Controller: FScut8000 (support English language, file formate .dxf, PLT, Gerber, AI and so on) Cutting software: Hypcut | Friendess, China |
Nesting | CypNest drawing processing, nesting, tool path generation and remote task transmission etc | Friendess, China |
Table | Strictly make table with hardening, tempering and annealing treatment to ensure no deformation in 20 years’ production | QY, China |
Technical Parameter | ||
1 | Laser Wavelength | 1070n |
2 | Maximum Power | 15kW |
3 | Max Acceleration | 1.5G |
4 | Power Consumption | 85Kw |
5 | Max Walking Speed | Single axis speed ≤120m/min Complex speed ≤160m/min |
6 | Min Linewidth | 0.15mm (for materials with thickness less than 0.4mm), depends on the sheet thickness |
7 | Cutting Thickness | MS: 50mm
SS: 50mm |
8 | Cutting Dimension | Exchange Table With Full Protection Cover |
2500*6000mm 2500*8000mm | ||
9 | Cutting Table Mechanical Accuracy： ±0.05mm | |
10 | X,Y Repeated Positioning Precision： ±0.03mm | |
11 | Power Supply: Three-phase 5 wires AC 380V±5%，50Hz/60HZ±1% | |
Our Machine Advantages
| Air conditioner room: with all electrical parts and laser source inside, Heat isolation、Dust Isolation、Fire Proof which will keep machine working stably even 24hours continued working, and prolong lifetime of electrical parts | |
 | Monitor Control System For good sake of operator’s safety each dead corner area can be monitored during cutting timely, the process can be controlled. | |
 | WIFI Remote Control System Fast transmit: easily from office PC to cutting machine, save time By reducing middle carrier, virus risk will be decreased Convenient for aftersales service | |
Our Machine Advantages
The main frame adopts a gantry beam structure, and the table bed is produced by welded by steel plates, and the stress is eliminated by T6 heat treatment, so that the strength, rigidity, servo drive acceleration and deceleration and numerical control system are highly matched No deformation in 20 years’ production |  |
Our Machine Advantages
 | Hy-vision for reproduction
*Visual reproduction *Save material *fast locating |
 | Hy-Lightening
*fast piercing *no sense piercing |
| Hy-Intelligence: the current production can be interrupted at any time and intersperse in the production of other drawings. You can also switch back unfinished processing tasks at any time to continue production. Optimize the equipment production plan and reduce the downtime of fragmentation
Automatically save breakpoint information Whether it is accidental power failure, or artificially stop the switch. For any unfinished drawing, the system will automatically record all data at the moment of interruption of the drawing. When the drawing is read again, the state before the interruption is automatically restored. | |

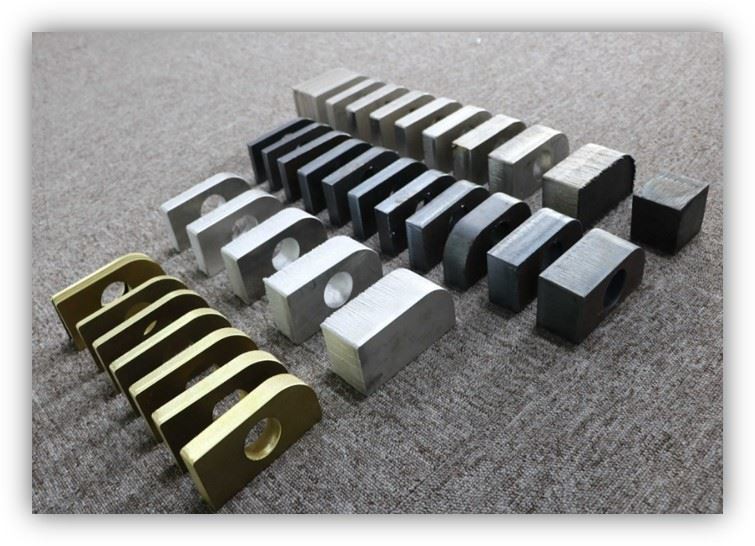

Cutting Samples
 |  |
 |  |
Machine Packages
 |  |  |
 |  |  |
 |  |  |
Factory Visiting
 |
 |
After sales team |  | Production dept |
R&D dept |  | Sales team |  |
 |
QY laser value
ØSeeking deep, not seeking wide: QY laser always dedicates to laser cutting machine what we are good at.
ØCustomers is the only reason we exist, we grow up with our customers together.
ØWe are not only providing laser products, but also solutions of production efficiency improvement.
ØWhat we offer is high quality products and services instead of low prices.
Thank you very much for your trust in QY, and choose QY as your partner!!!
