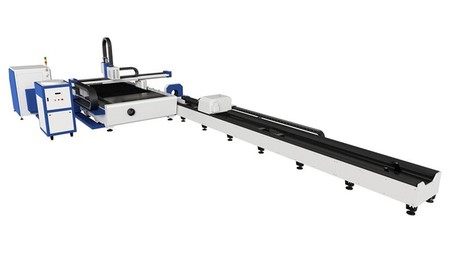

High Efficiency 3KW Sheet And Pipe Integrated CNC Laser Cutting Machine

Qingyuan Laser is well-known as one of the largest and professional high efficiency 3kw sheet and pipe integrated cnc laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you high efficiency 3kw sheet and pipe integrated cnc laser cutting machine at low price.



High Efficiency 3KW Sheet and Pipe Integrated CNC Laser Cutting Machine

◆Laser Wavelength:1070nm.
◆Maximum Power:3000W.
◆Max Acceleration:0.8G.
◆Power Consumption:23Kw.
◆Max Speed:Complex speed ≤90m/min.
◆Min Linewidth:0.15mm (for materials with thickness less than 0.4mm), depends on the sheet thickness.
◆Cutting for sheet:1500*3000mm.

MS: max 20mm, production 16mm;
SS: max 10mm, production 6mm.

◆Max loading weight: 900kgs.
◆Cutting for pipe:
Round tube: 20-220mm;
Square tube: 20*20-160*160mm.
◆Length: 6m.
◆Max loading: 300kgs.

◆Cutting Table Mechanical Accuracy：±0.05mm.
◆X,Y Repeated Positioning Precision： ±0.03mm.

The main frame adopts a gantry beam structure,and the table bed is produced by welded by steel plates, and the stress is eliminated by T6 heat treatment, so that the strength, rigidity, servo drive
acceleration and deceleration and numerical control system are highly matched
No deformation in 20 years' production.

Separate Control Box With Air conditioner

Independent Power Box with cooling unit
* with all electrical parts including PC, laser source installed inside, which will keep parts working stably even 24hours continued working, with cooler the machine will be working very stably with high cutting accuracy.
* dust proof, heat isolation.
* prolong lifetime of electrical parts.
