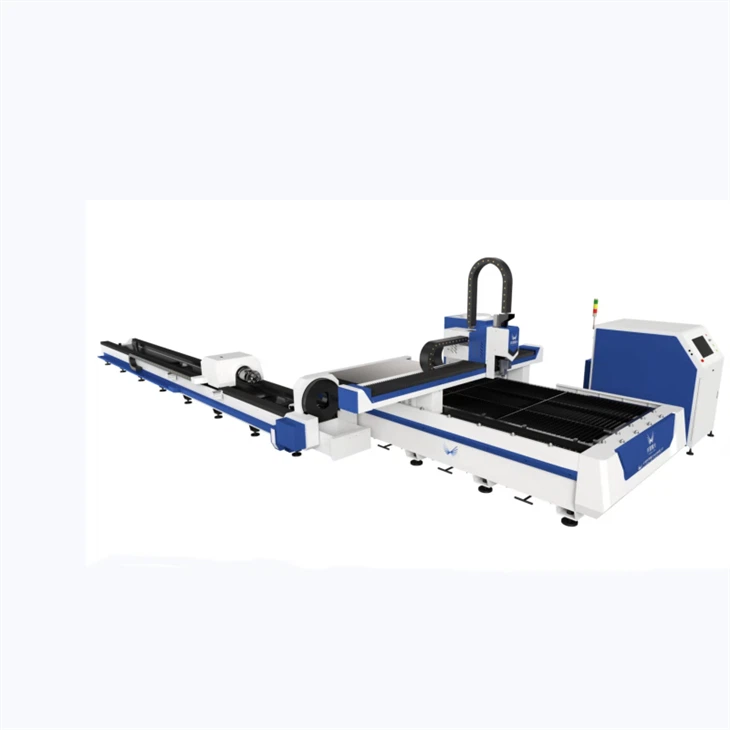

1.5KW 2KW 3KW Metal Sheet And Pipe Integrated CNC Laser Cutting Machine
We Supply 1.5KW 2KW 3KW Metal Sheet and Pipe Integrated CNC Laser Cutting Machine.
Product Introduction
1.5KW 2KW 3KW Metal Sheet and Pipe Integrated CNC Laser Cutting Machine
Single tube bearing：200KG
Effective cutting length of the pipe：6M
One machine dual use, efficient processing.
Meet the double needs of cutting pipes and plates; Cost and space savings
Fully automatic pneumatic chuck
Product Parameter
| Model | 1530 | 1540 | 2040 | 2060 |
| Processing width(mm) | 1500*3000 | 1500*4000 | 2000*4000 | 2000*6000 |
| Appearance size(mm) | 12006*6000*2400 | 13000*6400*2400 | 13000*6400*2400 | 77000*7000*2100 |
| Diameter of round tube(mm) | 20-240 | 20-240 | 20-240 | 20-240 |
| Side length of square pipe(mm) | 20-160 | 20-160 | 20-160 | 20-160 |
| Pipe Length(mm) | 6000 | 6000 | 6000 | 6000 |
| Maximum operating speed | 120m/min |
| Maximum acceleration | 1.0G |
| X/Y positioning accuracy | +0.03mm/m |
| X/Y Repeat Positioning Accuracy | +0.02mm/m |
| Operating voltage | 380V/50Hz |
| Laser power | 1500W-3000W |
| Machine power | 15KW-17KW |
| Machine operating temperature | 0°C-40C |
| Machine operating humidity | ＜ 90% |
| Transmission mode | Precision rack and pinion |
The main frame adopts a gantry beam structure,and the table bed is produced by welded by steel plates, and the stress is eliminated by T6 heat treatment, so that the strength, rigidity, servo drive
acceleration and deceleration and numerical control system are highly matched
No deformation in 20 years' production.
