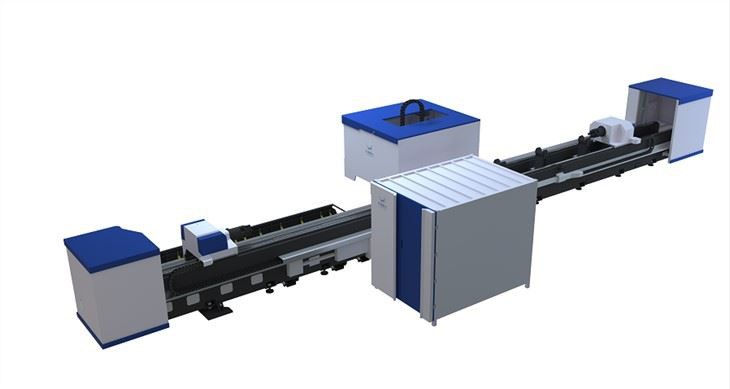

High Power 3 Chuck CNC Laser Cutting Machine Metal Tube Laser Cutter

Qingyuan Laser is well-known as one of the largest and professional high power 3 chuck cnc laser cutting machine metal tube laser cutter manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you high power 3 chuck cnc laser cutting machine metal tube laser cutter at low price.



High Power 3 chuck CNC Laser Cutting Machine Metal Tube Laser Cutter

Zero Tailing Wastage

Self-centering Pneumatic Chuck

Strong Dynamic Performance

High Speed Full Automatic Laser Cutting Machine

Features:

■The chuck has a self-regulating center function;

■With auto center searching function;

■Segmented feeding cutting to improve cutting accuracy;

■The three-chuck structure and the double clamping function of the middle chuck can assist in correcting the deformation of the small pipe and improve the cutting accuracy;

■Zero tailing wastage,high material untilization rate；

■High-speed automatic cutting.

Product Parameter

Model	2060	Max Cutting Speed	60m/min
X/Y Positioning Accuracy	±0.08mm	Max Rotating Speed	100rpm
X/Y Positioning Repeated Accuracy	±0.05mm	Max Acceleration	0.8G
Pipe Cutting Accuracy	±0.3mm	Power Consumption	23.5kW
Operating Voltage	380V/50Hz	Machine Running Temperature	0℃-40℃
Machine Dimension(mm)	16000x4400x2800	Machine Running Humidity	<90℃
Laser Power	1500w-4000w	Pipe Diameter(mm)	Round tube: 20-219 Square tube: 20-150

Quality Inspection

1.Each screw is tightened strictly according to the standard torque.

2.The installation of each gear is controlled within the accuracy range.

3.The accuracy of the splicing place of every two racks is controlled within 0.01mm.

4.Every steel plate welding machine must be finely welded and meticulously polished.

5.Every steel plate welding machine tool must undergo T6 heat treatment to eliminate stress.

6.Each tempered steel plate welding machine tool is processed by an imported gantry machining center to ensure the straightness and flatness of the machine tool.

7.After installation and commissioning, the equipment must be checked and precision compensated by the laser interferometer produced by API company in the United States to ensure the walking accuracy and repeat positioning accuracy of the factory equipment.
