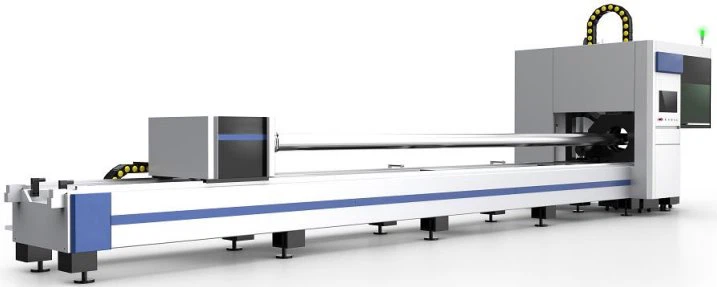

New Model Less Tailing Wastage CNC Metal Pipe Tube Laser Cutting Machine

Qingyuan Laser is well-known as one of the largest and professional new model less tailing wastage cnc metal pipe tube laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you new model less tailing wastage cnc metal pipe tube laser cutting machine at low price.



New Model Less Tailing Wastage CNC Metal Pipe Tube Laser Cutting Machine

Product Features:

◆Self-centering pneumatic chuck with thin tube protection limit for undamaged thin tube clamping;

◆Strong dynamic performance, greatly improve cutting efficiency;

◆High-speed automatic laser tube cutting machine for high-speed high-quality laser cutting of round tube, rectangular tube, special-shaped tube and other profiles.

Product Parameter:

Model	0260	Max Cutting Speed	100m/min
X/Y Positioning Accuracy	±0.03mm	Laser Power	1500w-4000w
X/Y Positioning Repeated Accuracy	±0.02mm	Max Acceleration	1.0G
Pipe Cutting Accuracy	±0.3mm	Power Consumption	10kW
Operating Voltage	380V/50Hz	Machine Running Temperature	0℃-40℃
Machine Dimension(mm)	10000*2100*2800	Machine Running Humidity	<90℃

Product Advantages:

1.Overall : highly integrated electrical cabinet and machine tool, beautiful appearance.

●When the equipment is disassembled, the integration is higher, and the tedious steps of disassembly and installation are saved. The power can be operated, saving time and labor.

●The circuit, gas circuit, oil pot, etc.are integrated in the electrical cabinet to prevent ash and oil, which is convenient for maintenance.

●The bed is widened and the atmosphere is more stable. The maximum diameter of the pipe can be 240mm ( previously 200mm ).

●The gas pressure regulating proportional valve used in cutting is directly facing the operation panel for convenient adjustment and observation.

●Compatible with semi-automatic feeding, can be installed without changing the equipment.

●The sheet metal cover has a lamp with appropriate brightness, which can clearly observe the cutting situation.

●Sheet metal cover internal reserved dust outlet, according to your needs, optional installation of dust extraction system ( environmental requirements ).

2.Pneumatic chuck

●240mm chuck, cylindrical inner square, can hold side length 160mm square tube.

●Our chuck adopts the design of outer circle and inner square, which can clamp square tube with side length of 160 mm, greatly improving the processing range of square tube.

●Advantages of cutting thin tube:When the pipe cutting machine cuts some thin tubes, the electric chuck often deforms the pipe clamp, causing problems such as loss of cutting accuracy and waste of materials. The pneumatic chuck can adjust the air pressure to adjust the strength of the claw, and under the condition of ensuring the stability of the air pressure, the material does not deform.

●Advantages of cutting heavy tube:pneumatic chuck can increase the pressure, so that the jaw clamping force will become larger, clamp more firmly.
