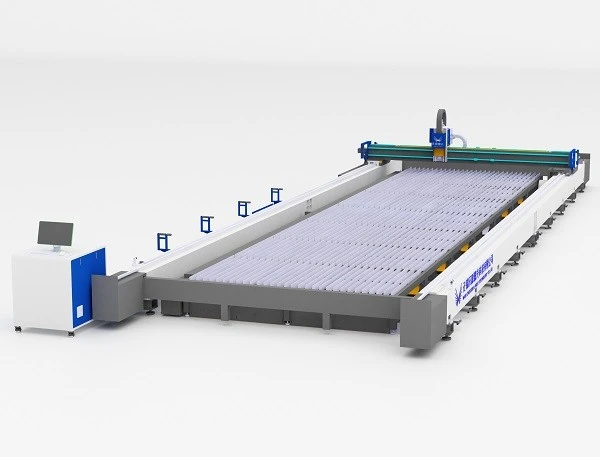

Line Rail Large Format Metal Sheet Fiber Laser Cutting Machine

Qingyuan Laser is well-known as one of the largest and professional line rail large format metal sheet fiber laser cutting machine manufacturers and suppliers in China. With a group of professional and effective personnel, we can offer you line rail large format metal sheet fiber laser cutting machine at low price.



Line rail large format Metal Sheet fiber laser cutting machine

Features:
1.Widened guideway support surface further optimizes the rigidity of the bed.
2.Composite heat insulation armor effectively protects the structural stability of the main beam of the bed in the medium power laser processing environment.
3.Energy saving and environmental protection, perfect smoke removal and dust removal system.
4.Low running cost, meet the needs of 24-hour industrial production.

Technical parameters:
Maximum running speed: 5m/min;
Maximum acceleration: 0.5G;
X/Y positioning accuracy: ±0.03mm/m;
X/Y repeat positioning accuracy: ±0.02mm/m;
Working voltage: 380V/50HZ;
Laser power: 6000W-60000W;
Machine power: 6KW-15KW;
Operating temperature of machine tool: 0℃-40;
Machine operating humidity：<90%;
Transmission mode: precision rack and pinion.

Series products:
Model: 30125
Processing width(mm):3000*12500
Appearance size(mm):17000*6000*2100

Application Materials
Specialized in cutting 0.5-100mm carbon steel plate, 0.5-100mm stainless steel plate, galvanized plate, electrolytic plate, silicon plate, 0.5-100mm aluminum alloy, 0.5-30mm copper and many other metal materials (thickness and material are related to the laser).
